| Manufacturer Part Number: | CTX20-4-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |

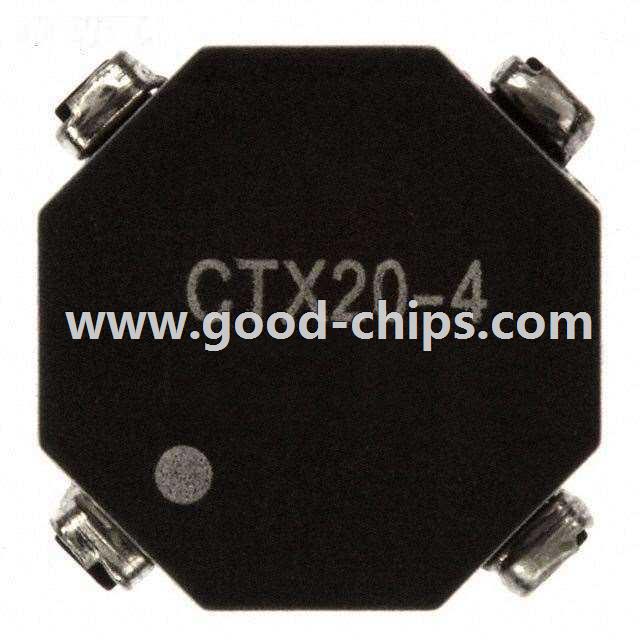

| Description: | Unshielded 2 Coil Inductor Array 78.4µH Inductance - Connected in Series 19.6µH Inductance - Connected in Parallel 55 mOhm Max DC Resistance (DCR) - Parallel 2.1A Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CTX20-4-R Datasheet |
| Internal Part Number | 898-CTX20-4-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Econo-Pac™, OCTA-PAC®, OCTA-PAC® Plus Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | OCTA-PAC® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 78.4µH | |
| Inductance - Connected In Parallel | 19.6µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 2.1A | |
| Current Rating - Series | 1.05A | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | 55 mOhm Max | |
| DC Resistance (DCR) - Series | 220 mOhm Max | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | |
| Height | 0.250" (6.35mm) | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CTX20-4-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
