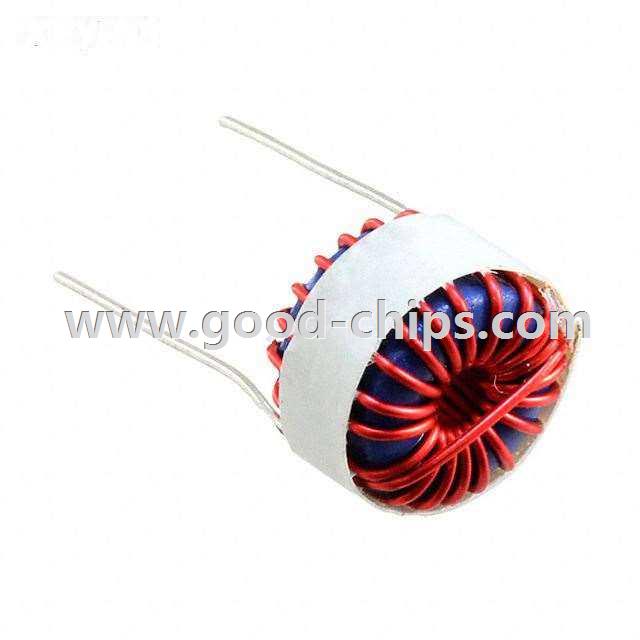

| Manufacturer Part Number: | CTX20-1-52LP-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20µH Unshielded Toroidal Inductor 1.8A 82.9 mOhm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CTX20-1-52LP-R Datasheet |
| Internal Part Number | 898-CTX20-1-52LP-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Eaton | |
| Series | CTX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Toroidal | |
| Material - Core | Powdered Iron | |
| Inductance | 20µH | |
| Tolerance | ±20% | |
| Current Rating | 1.8A | |
| Current - Saturation | 2.2A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 82.9 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 75°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.358" Dia (9.10mm) | |
| Height - Seated (Max) | 0.264" (6.70mm) | |
| Standard Package | 560 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CTX20-1-52LP-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CTX20-1-52LP-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CTX20-1-52LP-R is new and unused, you can buy CTX20-1-52LP-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTX20-1-52LP-R.
