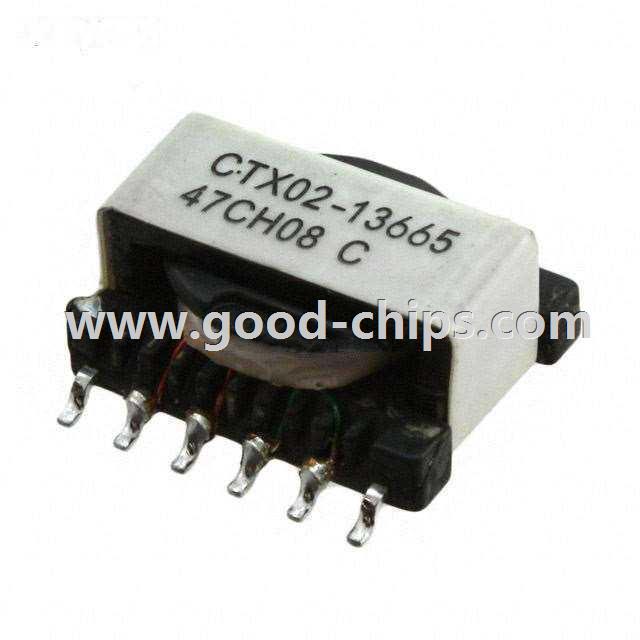

| Manufacturer Part Number: | CTX02-13665 |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Unshielded 2 Coil Inductor Array 1.254mH Inductance - Connected in Series 12-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CTX02-13665 Datasheet |
| Internal Part Number | 898-CTX02-13665 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Additional Assembly Site 6/Nov/2015 | |
| Online Catalog | CTX02 | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Eaton | |
| Series | OCTA-PAC® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 1.254mH | |
| Inductance - Connected In Parallel | - | |
| Tolerance | ±20% | |
| Current Rating - Parallel | - | |
| Current Rating - Series | - | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | - | |
| DC Resistance (DCR) - Series | - | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-SMD | |
| Size / Dimension | 0.634" L x 0.661" W (16.10mm x 16.80mm) | |
| Height | 0.291" (7.40mm) | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CTX02-13665 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CTX02-13665 is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CTX02-13665 is new and unused, you can buy CTX02-13665 Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CTX02-13665.
