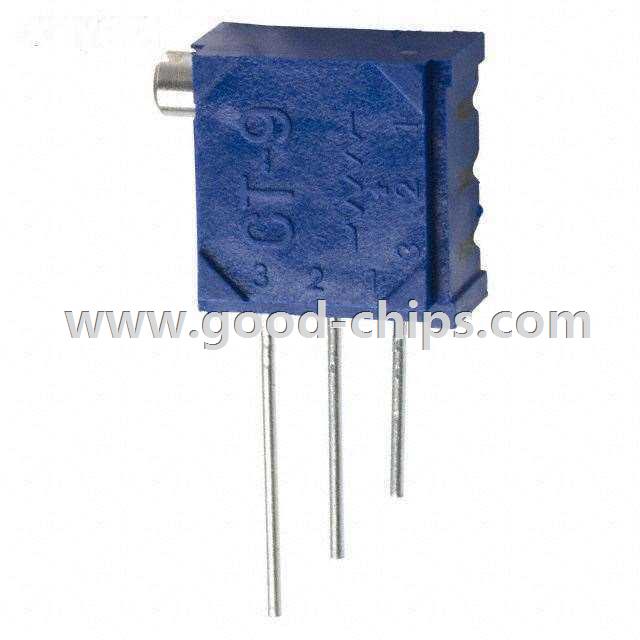

| Manufacturer Part Number: | CT9EX503 |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 9040 Pieces |
| Unit Price: | Quote by Email |
| Description: | 50k Ohm 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 18 Turn Side Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CT9EX503 Datasheet |
| Internal Part Number | 898-CT9EX503 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| 3D Model | CT9EX503 | |
| Online Catalog | CT9 Series | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CT9 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 50k | |
| Power (Watts) | 0.5W, 1/2W | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/°C | |
| Number of Turns | 18 | |
| Adjustment Type | Side Adjustment | |
| Resistive Material | Cermet | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pins | |
| Size / Dimension | Square - 0.378" L x 0.217" W x 0.378" H (9.60mm x 5.50mm x 9.60mm) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CT9EX503 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CT9EX503 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CT9EX503 is new and unused, you can buy CT9EX503 Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CT9EX503.
