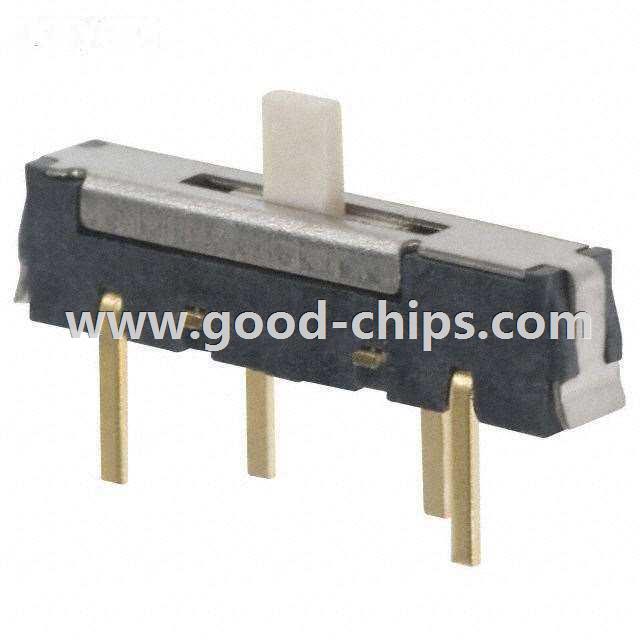

| Manufacturer Part Number: | CSS-1302MC |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Slide Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SP3T Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSS-1302MC Datasheet |
| Internal Part Number | 898-CSS-1302MC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Slide Switch 3D CAD Models | |
| 3D Model | CSS-1302MC | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | CSS | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SP3T | |
| Contact Timing | Non-Shorting (BBM) | |
| Switch Function | Mom-On-Mom | |
| Current Rating | 100mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Standard | |
| Actuator Length | 2.00mm | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Features | - | |
| Actuator Material | Liquid Crystal Polymer (LCP) | |
| Switch Travel | 2.00mm | |
| Operating Temperature | -20°C ~ 70°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | 102 ~ 357gf | |
| Standard Package | 608 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSS-1302MC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSS-1302MC is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of CSS-1302MC is new and unused, you can buy CSS-1302MC Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSS-1302MC.
