| Manufacturer Part Number: | CSR1010A05-IQQM-R |
|---|---|
| Manufacturer: | CSR PLC |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 57010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 32-UFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSR1010A05-IQQM-R Datasheet |
| Internal Part Number | 898-CSR1010A05-IQQM-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | µEnergy® Bluetooth Low Energy Platform | |
| PCN Packaging | CSR Product Mark, Pkg, Label Update 29/Apr/2016 | |
| Online Catalog | CSRµ Energy® | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | CSR PLC | |
| Series | µEnergy® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v4.0 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate (Max) | 3.69Mbaud | |
| Power - Output | 9dBm | |
| Sensitivity | -93dBm | |
| Memory Size | 64kB RAM, 64kB ROM | |
| Serial Interfaces | I²C, SPI, UART | |
| GPIO | 15 | |
| Voltage - Supply | 1.2 V ~ 3.6 V | |
| Current - Receiving | 20mA | |
| Current - Transmitting | 18mA | |
| Operating Temperature | -30°C ~ 85°C | |

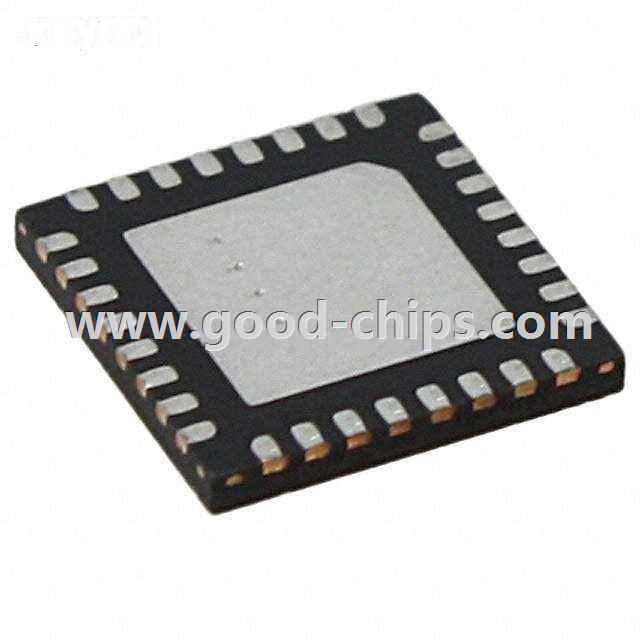

| Package / Case | 32-UFQFN Exposed Pad | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSR1010A05-IQQM-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSR1010A05-IQQM-R is in stock for immediate shipping now. We are the distributor of CSR PLC all series components. The condition of CSR1010A05-IQQM-R is new and unused, you can buy CSR1010A05-IQQM-R CSR PLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSR1010A05-IQQM-R.
