| Manufacturer Part Number: | CSPEMI400G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47 Ohms, 100 Ohms, C = 20pF 10-UFBGA, WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSPEMI400G Datasheet |
| Internal Part Number | 898-CSPEMI400G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 17/Apr/2015 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 3 | |
| Center / Cutoff Frequency | 77MHz, 85MHz (Cutoff) | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 47, 100 | |
| Current | - | |
| Values | R = 47 Ohms, 100 Ohms, C = 20pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

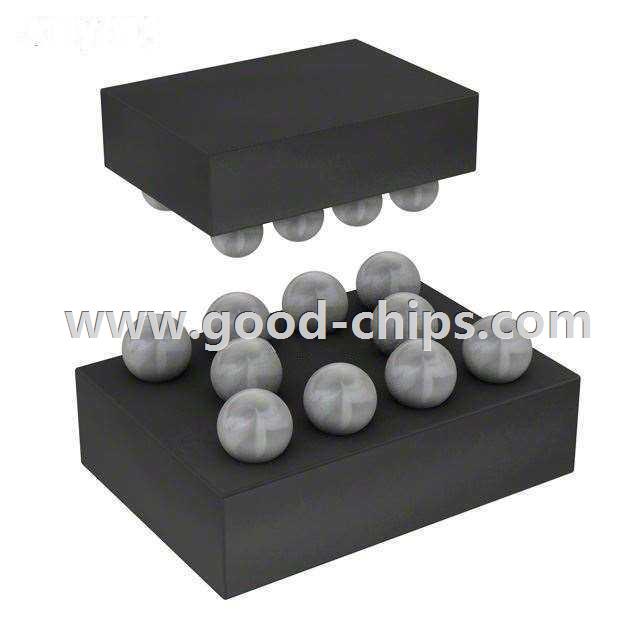

| Package / Case | 10-UFBGA, WLCSP | |
| Size / Dimension | 0.077" L x 0.052" W (1.96mm x 1.33mm) | |
| Height | 0.026" (0.65mm) | |
| Standard Package | 3,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSPEMI400G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSPEMI400G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CSPEMI400G is new and unused, you can buy CSPEMI400G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSPEMI400G.
