| Manufacturer Part Number: | CSM1Z-A2B4C7-60-24.0D18-F |
|---|---|
| Manufacturer: | Cardinal Components Inc. |
| Product Category: | Crystals |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

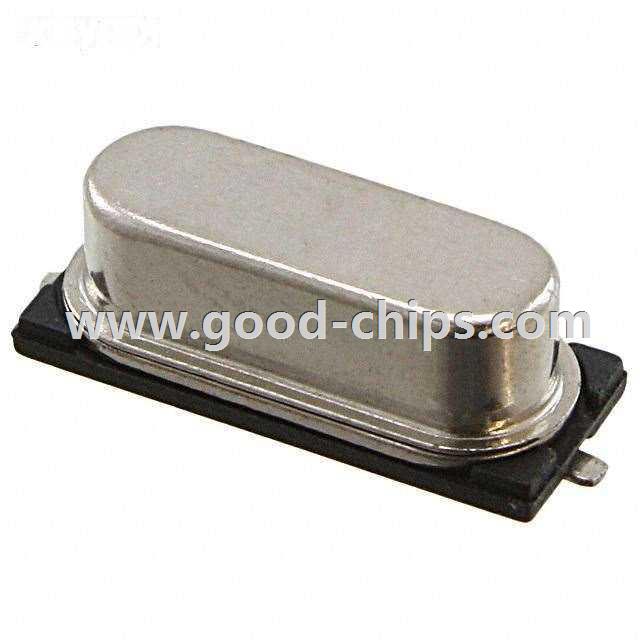

| Description: | 24MHz ±25ppm Crystal 18pF 60 Ohm -40°C ~ 85°C Surface Mount HC-49S |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSM1Z-A2B4C7-60-24.0D18-F Datasheet |
| Internal Part Number | 898-CSM1Z-A2B4C7-60-24.0D18-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Crystals | |
| Manufacturer | Cardinal Components Inc. | |
| Series | CSM1 | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Type | MHz Crystal | |
| Frequency | 24MHz | |
| Frequency Stability | ±10ppm | |
| Frequency Tolerance | ±25ppm | |
| Load Capacitance | 18pF | |
| ESR (Equivalent Series Resistance) | 60 Ohm | |
| Operating Mode | Fundamental | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | HC-49S | |
| Size / Dimension | 0.449" L x 0.185" W (11.40mm x 4.70mm) | |
| Height | 0.169" (4.30mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSM1Z-A2B4C7-60-24.0D18-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSM1Z-A2B4C7-60-24.0D18-F is in stock for immediate shipping now. We are the distributor of Cardinal Components Inc. all series components. The condition of CSM1Z-A2B4C7-60-24.0D18-F is new and unused, you can buy CSM1Z-A2B4C7-60-24.0D18-F Cardinal Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSM1Z-A2B4C7-60-24.0D18-F.
