| Manufacturer Part Number: | CSM-360-W45S-D22-GV401 |
|---|---|
| Manufacturer: | Luminus Devices Inc. |
| Product Category: | LED Lighting - COBs, Engines, Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

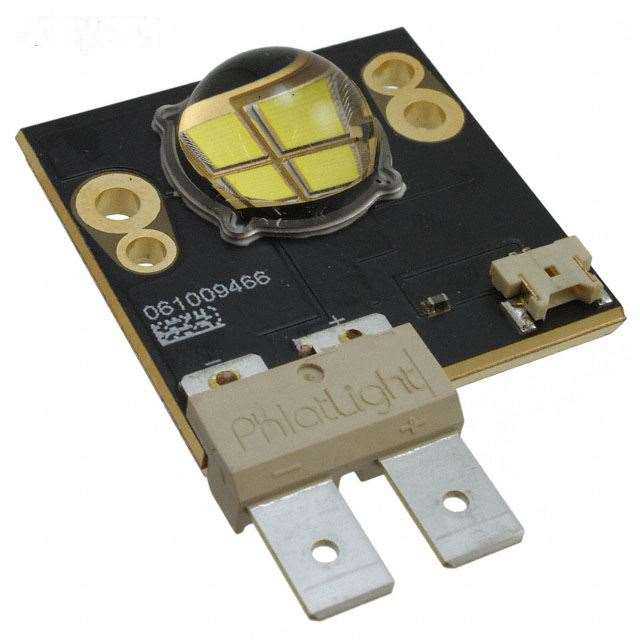

| Description: | LED Lighting COBs, Engines, Modules LED Module CSM-360 White, Neutral Rectangle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSM-360-W45S-D22-GV401 Datasheet |
| Internal Part Number | 898-CSM-360-W45S-D22-GV401 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | CSM-360-W Devices 06/Dec/2013 | |
| Category | Optoelectronics | |
| Family | LED Lighting - COBs, Engines, Modules | |
| Manufacturer | Luminus Devices Inc. | |
| Series | CSM-360 | |
| Packaging | - | |
| Part Status | Obsolete | |
| Type | LED Module | |
| Color | White, Neutral | |
| CCT (K) | 4500K | |
| Wavelength | - | |
| Configuration | Rectangle | |
| Flux @ Current/Temperature - Test | 3300 lm (3000 lm ~ 3600 lm) | |
| Current - Test | 3.15A | |
| Temperature - Test | 40°C | |
| Voltage - Forward (Vf) (Typ) | 13.14V | |
| Lumens/Watt @ Current - Test | 80 lm/W | |
| Current - Max | 6.3A | |
| CRI (Color Rendering Index) | 70 (Typ) | |
| Viewing Angle | 115° | |
| Features | With Connector | |
| Size / Dimension | 36.00mm L x 51.00mm W | |
| Height | 5.61mm | |
| Light Emitting Surface (LES) | 16.00mm Diameter | |
| Lens Type | Domed | |
| Standard Package | 8 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSM-360-W45S-D22-GV401 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSM-360-W45S-D22-GV401 is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of CSM-360-W45S-D22-GV401 is new and unused, you can buy CSM-360-W45S-D22-GV401 Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSM-360-W45S-D22-GV401.
