| Manufacturer Part Number: | CSHDD16-100C TR13 |
|---|---|
| Manufacturer: | Central Semiconductor Corp |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Schottky 100V 16A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSHDD16-100C TR13 Datasheet |
| Internal Part Number | 898-CSHDD16-100C TR13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration of Compliance | |
| Online Catalog | Schottky Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Central Semiconductor Corp | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) (per Diode) | 16A | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 16A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 50µA @ 100V | |
| Mounting Type | Surface Mount | |

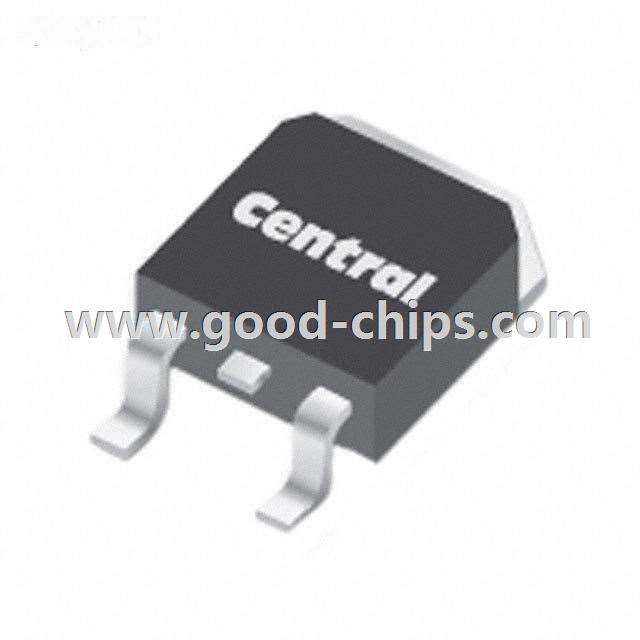

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | |
| Supplier Device Package | D2PAK | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSHDD16-100C TR13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSHDD16-100C TR13 is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CSHDD16-100C TR13 is new and unused, you can buy CSHDD16-100C TR13 Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSHDD16-100C TR13.
