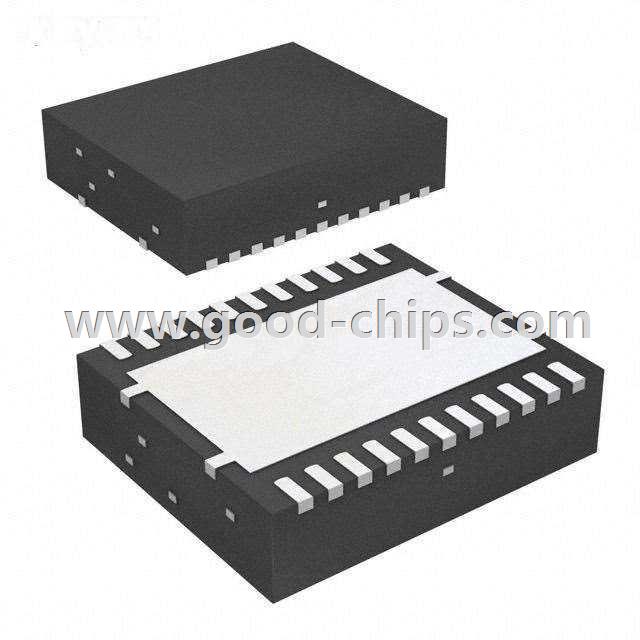

| Manufacturer Part Number: | CSD96370Q5M |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC SYNC BUCK NEXFET 22SON |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSD96370Q5M Datasheet |
| Internal Part Number | 898-CSD96370Q5M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | NexFET MOSFET Technology | |
| Video File | PowerStack™ Packaging Technology Overview | |
| Manufacturer Product Page | CSD96370Q5M Specifications | |
| Online Catalog | Full, Half-Bridge Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Texas Instruments | |
| Series | NexFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Half Bridge | |
| Applications | Synchronous Buck Converters | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 40A | |
| Current - Peak Output | 60A | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 3.3 V ~ 13.2 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Features | Bootstrap Circuit | |
| Fault Protection | Shoot-Through, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 22-LFDFN Exposed Pad | |
| Supplier Device Package | 22-LSON (6x5) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSD96370Q5M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSD96370Q5M is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CSD96370Q5M is new and unused, you can buy CSD96370Q5M Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD96370Q5M.
