| Manufacturer Part Number: | CSD85312Q3E |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 20V 39A 8VSON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSD85312Q3E Datasheet |
| Internal Part Number | 898-CSD85312Q3E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | CSD85312Q3E Specifications | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Texas Instruments | |
| Series | NexFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) Common Source | |
| FET Feature | Logic Level Gate, 5V Drive | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 39A | |
| Rds On (Max) @ Id, Vgs | 12.4 mOhm @ 10A, 8V | |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 15.2nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 2390pF @ 10V | |
| Power - Max | 2.5W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

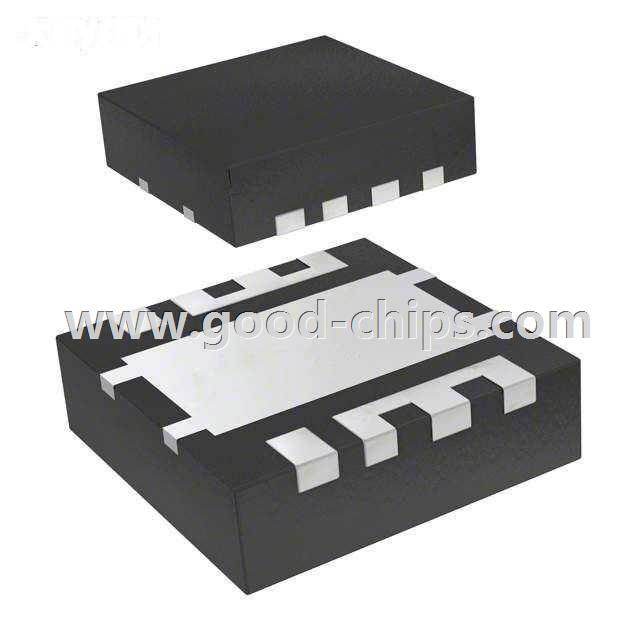

| Package / Case | 8-PowerVDFN | |
| Supplier Device Package | 8-VSON (3.3x3.3) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSD85312Q3E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSD85312Q3E is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CSD85312Q3E is new and unused, you can buy CSD85312Q3E Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD85312Q3E.
