| Manufacturer Part Number: | CSD83325L |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 12V 52A 6PICOSTAR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSD83325L Datasheet |
| Internal Part Number | 898-CSD83325L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | CSD83325L Specifications | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Texas Instruments | |
| Series | NexFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | 2 N-Channel (Dual) Common Drain | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | - | |
| Current - Continuous Drain (Id) @ 25°C | - | |
| Rds On (Max) @ Id, Vgs | - | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 10.9nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | - | |
| Power - Max | 2.3W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

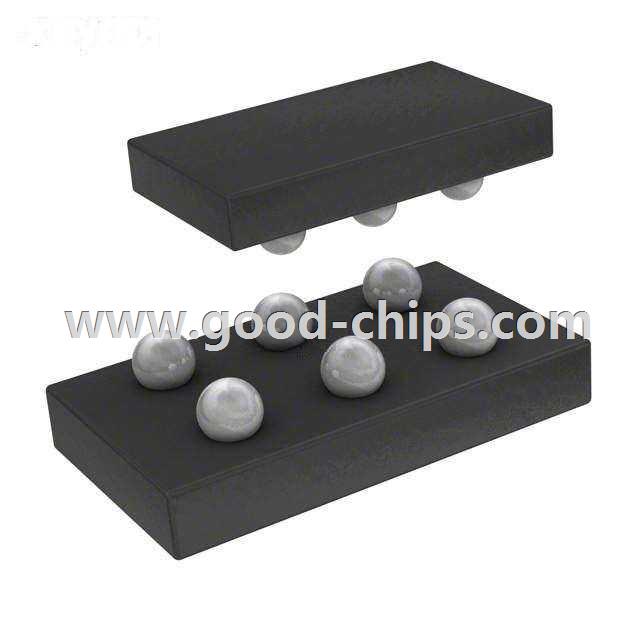

| Package / Case | 6-XFBGA | |
| Supplier Device Package | 6-PicoStar | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSD83325L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSD83325L is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CSD83325L is new and unused, you can buy CSD83325L Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD83325L.
