Manufacturer Part Number: | CSD17313Q2 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 18010 Pieces |
Unit Price: | Quote by Email |

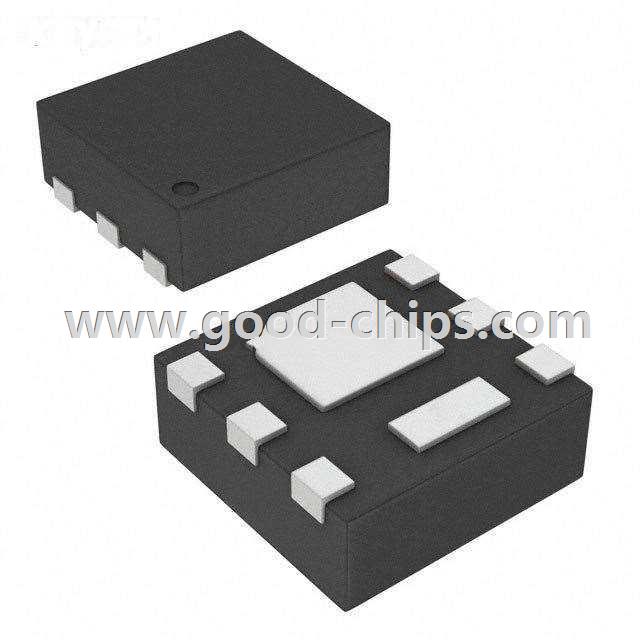

Description: | MOSFET N-CH 30V 5A 6SON |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CSD17313Q2 Datasheet |
Internal Part Number | 898-CSD17313Q2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Ringing Reduction Techniques for MOSFETS | |
Product Training Modules | NexFET MOSFET Technology | |
Video File | NexFET Power Block PowerStack™ Packaging Technology Overview | |
Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
PCN Design/Specification | Marking Standardization 29/Jan/2015 | |
Manufacturer Product Page | CSD17313Q2 Specifications | |
Online Catalog | N-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Texas Instruments | |
Series | NexFET™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 5A (Tc) | |
Rds On (Max) @ Id, Vgs | 30 mOhm @ 4A, 8V | |
Vgs(th) (Max) @ Id | 1.8V @ 250µA | |
Gate Charge (Qg) @ Vgs | 2.7nC @ 4.5V | |
Input Capacitance (Ciss) @ Vds | 340pF @ 15V | |
Power - Max | 2.3W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | 6-WDFN Exposed Pad | |
Supplier Device Package | 6-WSON (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CSD17313Q2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CSD17313Q2 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of CSD17313Q2 is new and unused, you can buy CSD17313Q2 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD17313Q2.
