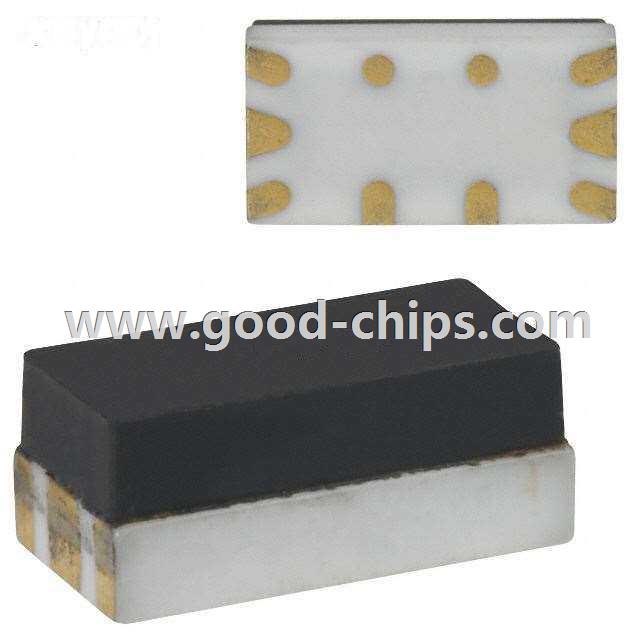

Manufacturer Part Number: | CRF05-1A |
---|---|
Manufacturer: | Standex-Meder Electronics |
Product Category: | Signal Relays, Up to 2 Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Relay SPST-NO (1 Form A) Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CRF05-1A Datasheet |
Internal Part Number | 898-CRF05-1A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Magnetic Mapping RF Reed Relays Presentation – Part 1 RF Reed Relays Presentation-Part 2 | |
Online Catalog | CRF Series | |
Category | Relays | |
Family | Signal Relays, Up to 2 Amps | |
Manufacturer | Standex-Meder Electronics | |
Series | CRF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Relay Type | RF | |
Coil Type | Non Latching | |
Coil Current | 33.3mA | |
Coil Voltage | 5VDC | |
Contact Form | SPST-NO (1 Form A) | |
Contact Rating (Current) | 500mA | |
Switching Voltage | 170VAC, 170VDC - Max | |
Turn On Voltage (Max) | 3.75 VDC | |
Turn Off Voltage (Min) | 0.75 VDC | |
Operate Time | 0.1ms | |
Release Time | 0.02ms | |
Features | - | |
Mounting Type | Surface Mount | |
Termination Style | SMD (SMT) Tab | |
Contact Material | - | |
Coil Power | 167 mW | |
Coil Resistance | 150 Ohms | |
Operating Temperature | -40°C ~ 125°C | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CRF05-1A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CRF05-1A is in stock for immediate shipping now. We are the distributor of Standex-Meder Electronics all series components. The condition of CRF05-1A is new and unused, you can buy CRF05-1A Standex-Meder Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CRF05-1A.
