| Manufacturer Part Number: | CRD5463PM-Z |
|---|---|
| Manufacturer: | Cirrus Logic Inc. |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CS5463 - Power Management, Energy/Power Meter Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CRD5463PM-Z Datasheet |
| Internal Part Number | 898-CRD5463PM-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | CRD5463PM: Power Monitor, 15A Max, 90 ~ 260VAC | |
| Online Catalog | CRD5463PM Power Monitor Reference Design | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Cirrus Logic Inc. | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Energy/Power Meter | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | CS5463 | |
| Primary Attributes | Single Phase Power Meter | |
| Secondary Attributes | 90 ~ 260 VAC | |

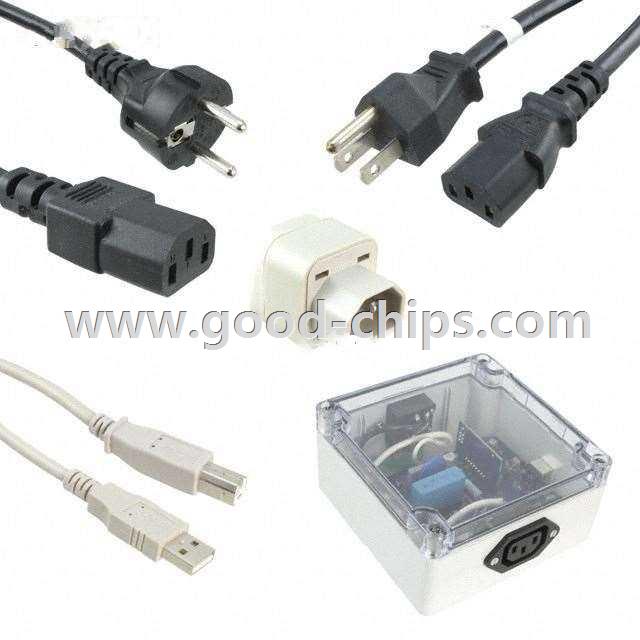

| Supplied Contents | Module, Adapter, Cables, Power Cords | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CRD5463PM-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CRD5463PM-Z is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CRD5463PM-Z is new and unused, you can buy CRD5463PM-Z Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CRD5463PM-Z.
