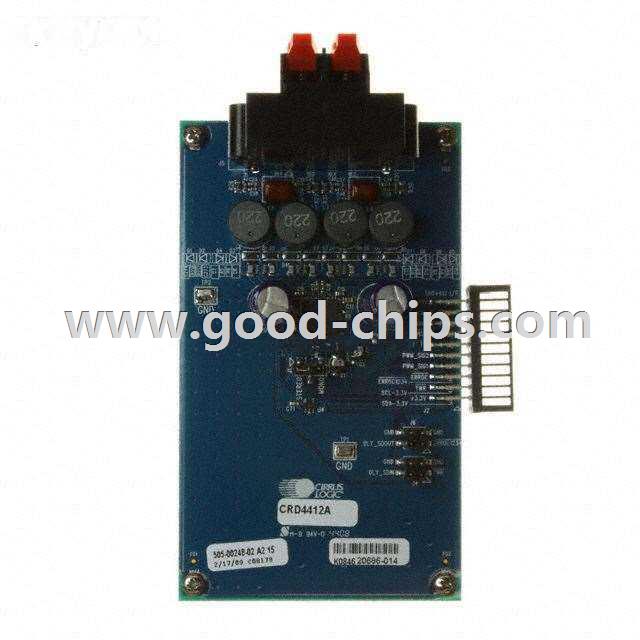

| Manufacturer Part Number: | CRD4412A |
|---|---|
| Manufacturer: | Cirrus Logic Inc. |
| Product Category: | Evaluation Boards - Audio Amplifiers |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | CS4412A Popguard® 2-Channel (Stereo) or 4-Channel (Quad) Output Class D Audio Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CRD4412A Datasheet |
| Internal Part Number | 898-CRD4412A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Audio Amplifiers | |
| Manufacturer | Cirrus Logic Inc. | |
| Series | Popguard® | |
| Part Status | Obsolete | |
| Amplifier Type | Class D | |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) | |
| Max Output Power x Channels @ Load | 30W x 1 @ 4 Ohm; 15W x 2 @ 8 Ohm | |
| Voltage - Supply | 8 V ~ 18 V | |
| Board Type | Fully Populated | |
| Utilized IC / Part | CS4412A | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CRD4412A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CRD4412A is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CRD4412A is new and unused, you can buy CRD4412A Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CRD4412A.
