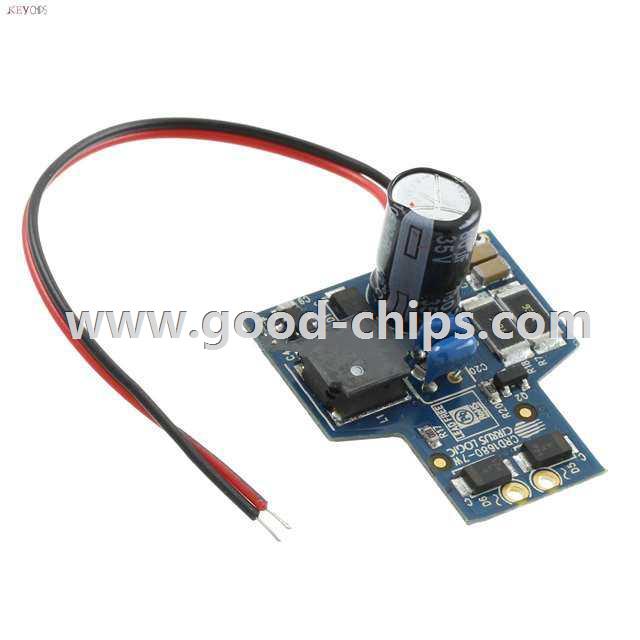

| Manufacturer Part Number: | CRD1680-7W-Z |
|---|---|
| Manufacturer: | Cirrus Logic Inc. |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CS1680 LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CRD1680-7W-Z Datasheet |
| Internal Part Number | 898-CRD1680-7W-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| PCN Obsolescence/ EOL | CS168x Devices 29/Jul/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Cirrus Logic Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Current - Output / Channel | - | |
| Outputs and Type | - | |
| Voltage - Output | - | |
| Features | Dimmable | |
| Voltage - Input | - | |
| Supplied Contents | Board | |
| Utilized IC / Part | CS1680 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CRD1680-7W-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CRD1680-7W-Z is in stock for immediate shipping now. We are the distributor of Cirrus Logic Inc. all series components. The condition of CRD1680-7W-Z is new and unused, you can buy CRD1680-7W-Z Cirrus Logic Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CRD1680-7W-Z.
