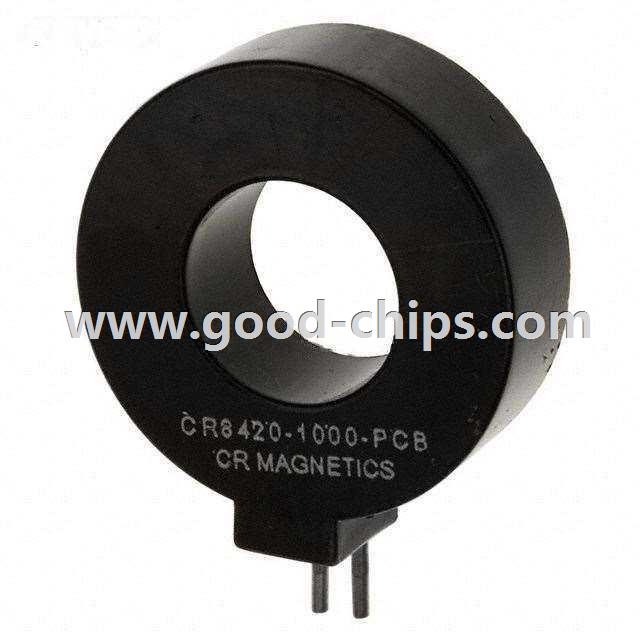

| Manufacturer Part Number: | CR8420-1000-PCB |
|---|---|
| Manufacturer: | CR Magnetics Inc. |
| Product Category: | Current Sense Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS CURRENT PC PIN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CR8420-1000-PCB Datasheet |
| Internal Part Number | 898-CR8420-1000-PCB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | CR8400 Series | |
| Category | Transformers | |
| Family | Current Sense Transformers | |
| Manufacturer | CR Magnetics Inc. | |
| Series | CR8400 | |
| Part Status | Active | |
| Turns Ratio - Primary:Secondary | 1 : 1000 | |
| Frequency | 20Hz ~ 1kHz | |
| Inductance | - | |
| Current Rating | - | |
| DC Resistance (DCR) | - | |
| E.T. | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Size / Dimension | 30.00mm Dia x 9.00mm W | |
| Height - Seated (Max) | - | |
| Termination Style | Wire Leads | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CR8420-1000-PCB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CR8420-1000-PCB is in stock for immediate shipping now. We are the distributor of CR Magnetics Inc. all series components. The condition of CR8420-1000-PCB is new and unused, you can buy CR8420-1000-PCB CR Magnetics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CR8420-1000-PCB.
