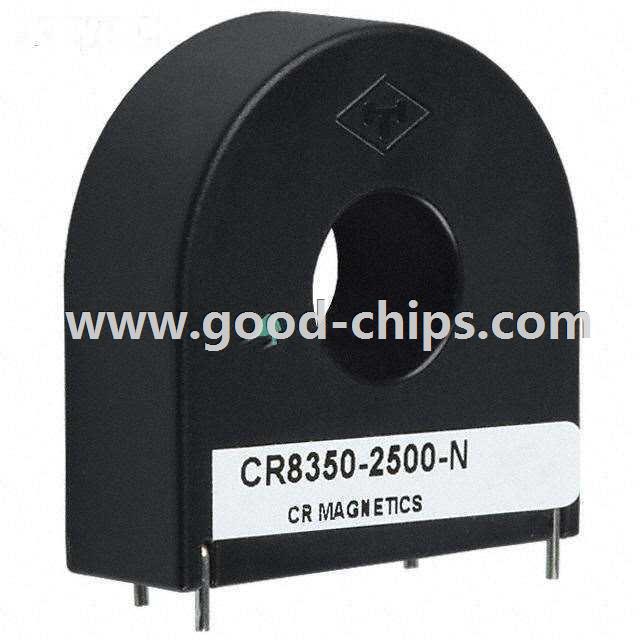

Manufacturer Part Number: | CR8350-2500-N |
---|---|
Manufacturer: | CR Magnetics Inc. |
Product Category: | Current Sense Transformers |
Available Quantity: | 9811 Pieces |
Unit Price: | Quote by Email |
Description: | TRANSF CURRENT .50" OPENING PCB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CR8350-2500-N Datasheet |
Internal Part Number | 898-CR8350-2500-N | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | CR8300 Series | |
Category | Transformers | |
Family | Current Sense Transformers | |
Manufacturer | CR Magnetics Inc. | |
Series | CR8300 | |
Part Status | Active | |
Turns Ratio - Primary:Secondary | 1 : 2500 | |
Frequency | 20Hz ~ 1kHz | |
Inductance | - | |
Current Rating | 100A | |
DC Resistance (DCR) | 57 Ohm | |
E.T. | - | |
Mounting Type | Through Hole | |
Size / Dimension | 37.50mm L x 14.00mm W | |
Height - Seated (Max) | 39.00mm | |
Termination Style | PC Pin | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CR8350-2500-N | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CR8350-2500-N is in stock for immediate shipping now. We are the distributor of CR Magnetics Inc. all series components. The condition of CR8350-2500-N is new and unused, you can buy CR8350-2500-N CR Magnetics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CR8350-2500-N.
