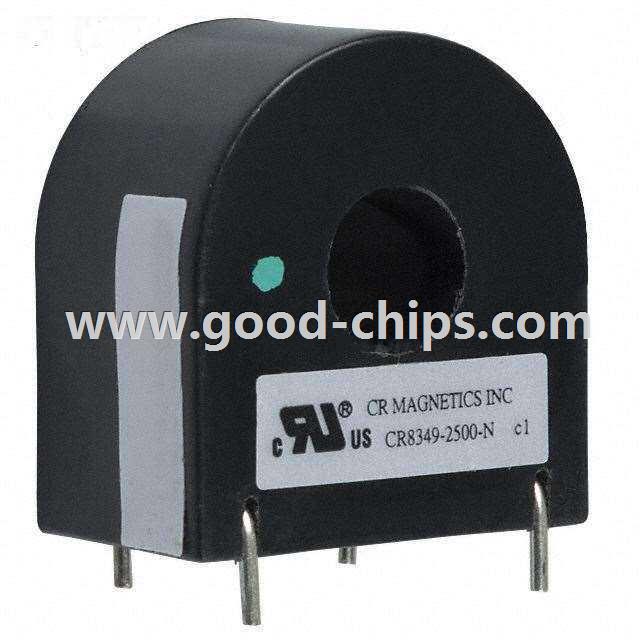

| Manufacturer Part Number: | CR8349-2500-N |
|---|---|
| Manufacturer: | CR Magnetics Inc. |
| Product Category: | Current Sense Transformers |
| Available Quantity: | 10905 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSF CURRENT .35" OPENING PCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CR8349-2500-N Datasheet |
| Internal Part Number | 898-CR8349-2500-N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | CR8300 Series | |
| Category | Transformers | |
| Family | Current Sense Transformers | |
| Manufacturer | CR Magnetics Inc. | |
| Series | CR8300 | |
| Part Status | Active | |
| Turns Ratio - Primary:Secondary | 1 : 2500 | |
| Frequency | 20Hz ~ 1kHz | |
| Inductance | - | |
| Current Rating | 75A | |
| DC Resistance (DCR) | 190 Ohm | |
| E.T. | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 26.00mm L x 17.00mm W | |
| Height - Seated (Max) | 28.00mm | |
| Termination Style | PC Pin | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CR8349-2500-N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CR8349-2500-N is in stock for immediate shipping now. We are the distributor of CR Magnetics Inc. all series components. The condition of CR8349-2500-N is new and unused, you can buy CR8349-2500-N CR Magnetics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CR8349-2500-N.
