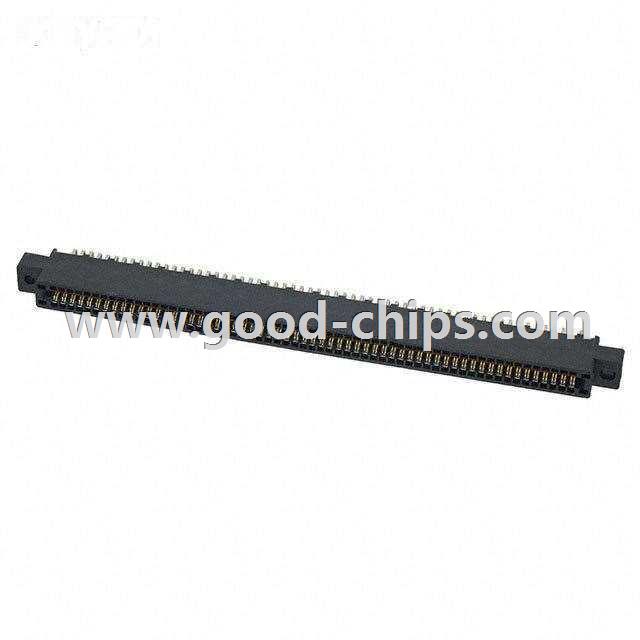

| Manufacturer Part Number: | CR22D-120D-2.54DSA(70) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN EDGE CARD 120 POS 2.54MM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CR22D-120D-2.54DSA(70) Datasheet |
| Internal Part Number | 898-CR22D-120D-2.54DSA(70) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | CR22 Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | CR22 | |
| Packaging | Tray | |
| Part Status | Active | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 120 | |
| Card Thickness | 0.063" (1.60mm) | |
| Number of Rows | 2 | |
| Pitch | 0.100" (2.54mm) | |
| Features | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | Top Mount Opening, Unthreaded, 0.128" (3.30mm) Dia | |
| Operating Temperature | -30°C ~ 85°C | |
| Material - Insulation | Polybutylene Terephthalate (PBT) | |
| Read Out | Dual | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CR22D-120D-2.54DSA(70) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CR22D-120D-2.54DSA(70) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of CR22D-120D-2.54DSA(70) is new and unused, you can buy CR22D-120D-2.54DSA(70) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CR22D-120D-2.54DSA(70).
