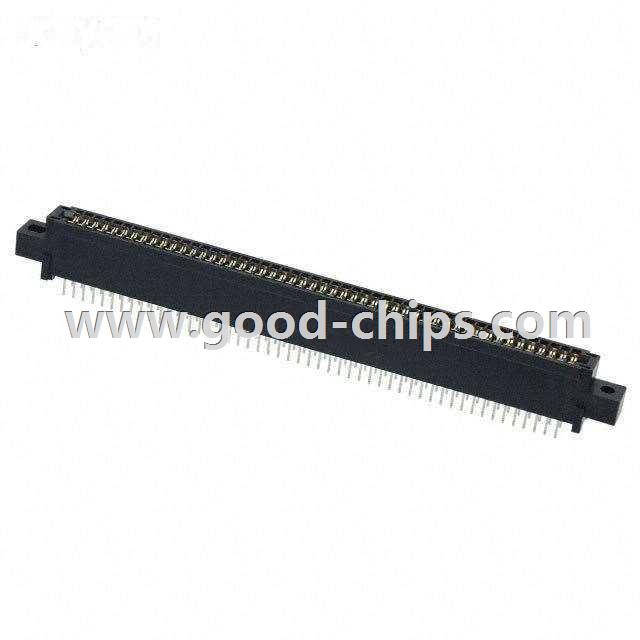

CR22-100D-2.54DS(70)

CR22-100D-2.54DS(70)
Manufacturer Part Number:CR22-100D-2.54DS(70)
Manufacturer:
Product Category:Card Edge Connectors - Edgeboard Connectors
Available Quantity:9015 Pieces
Unit Price:Quote by Email
Description:CONN EDGE CARD 100 POS 2.54MM
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CR22-100D-2.54DS(70) Datasheet
CR22-100D-2.54DS(70)´s Parameters
Internal Part Number898-CR22-100D-2.54DS(70)
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog CR22 Series
CategoryConnectors, Interconnects
FamilyCard Edge Connectors - Edgeboard Connectors
ManufacturerHirose Electric Co Ltd
SeriesCR22
PackagingTray
Part StatusActive
Card TypeNon Specified - Dual Edge
GenderFemale
Number of Positions/Bay/Row-
Number of Positions100
Card Thickness0.063" (1.60mm)
Number of Rows2
Pitch0.100" (2.54mm)
Features-
Mounting TypeThrough Hole
TerminationSolder
Contact MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness-
Contact Type-
ColorBlack
Flange FeatureTop Mount Opening, Unthreaded, 0.128" (3.30mm) Dia
Operating Temperature-30°C ~ 85°C
Material - InsulationPolybutylene Terephthalate (PBT)
Read OutDual
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartCR22-100D-2.54DS(70)
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CR22-100D-2.54DS(70) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of CR22-100D-2.54DS(70) is new and unused, you can buy CR22-100D-2.54DS(70) Hirose Electric Co Ltd with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CR22-100D-2.54DS(70).
