| Manufacturer Part Number: | CPPLC1-LT56T |
|---|---|
| Manufacturer: | Cardinal Components Inc. |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1MHz ~ 100MHz CMOS XO (Standard) Programmable Oscillator Through Hole 3.3V 25mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPPLC1-LT56T Datasheet |
| Internal Part Number | 898-CPPLC1-LT56T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | CPPL FIPO™ Series with Ordering Guide | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | Cardinal Components Inc. | |
| Series | FIPO™ CPPL | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 1MHz ~ 100MHz | |
| Function | Enable/Disable | |
| Output | CMOS | |
| Voltage - Supply | 3.3V | |
| Frequency Stability | ±100ppm | |
| Frequency Stability (Total) | - | |
| Operating Temperature | -20°C ~ 70°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 25mA | |
| Ratings | - | |
| Mounting Type | Through Hole | |

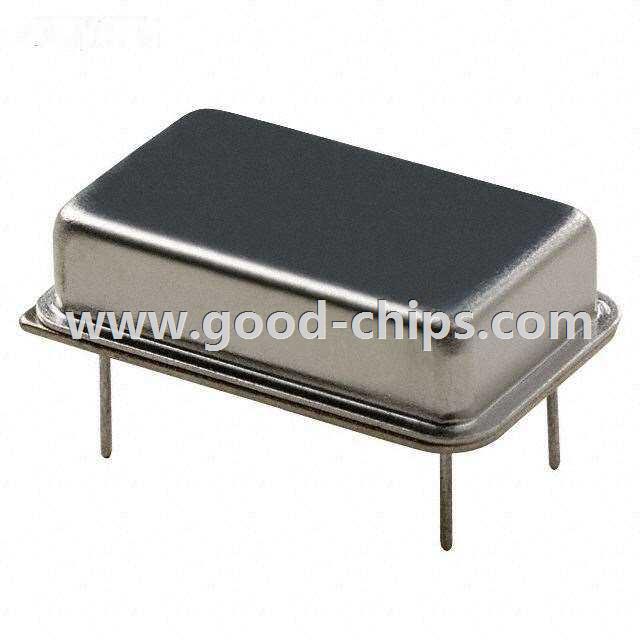

| Package / Case | 14-DIP, 4 Leads (Full Size, Metal Can) | |
| Size / Dimension | 0.819" L x 0.520" W (20.80mm x 13.20mm) | |
| Height | 0.200" (5.08mm) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPPLC1-LT56T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPPLC1-LT56T is in stock for immediate shipping now. We are the distributor of Cardinal Components Inc. all series components. The condition of CPPLC1-LT56T is new and unused, you can buy CPPLC1-LT56T Cardinal Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPPLC1-LT56T.
