Manufacturer Part Number: | CPN16 |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

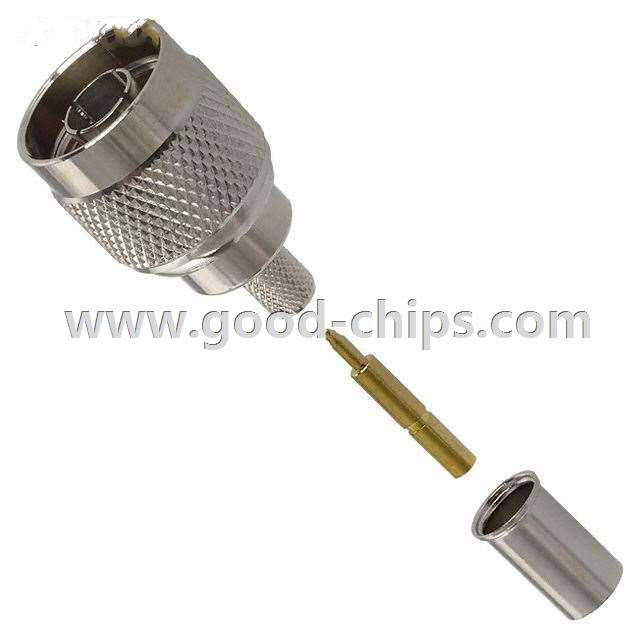

Description: | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp or Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CPN16 Datasheet |
Internal Part Number | 898-CPN16 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Connectivity Solutions | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Cinch Connectivity Solutions AIM-Cambridge | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | N Type | |
Connector Type | Plug, Male Pin | |
Contact Termination | Crimp or Solder | |
Shield Termination | Crimp | |
Impedance | 50 Ohm | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | RG-450 Proflex | |
Fastening Type | Threaded | |
Frequency - Max | 11GHz | |
Features | - | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Brass | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | 500V | |
Operating Temperature | -65°C ~ 165°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CPN16 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CPN16 is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of CPN16 is new and unused, you can buy CPN16 Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPN16.
