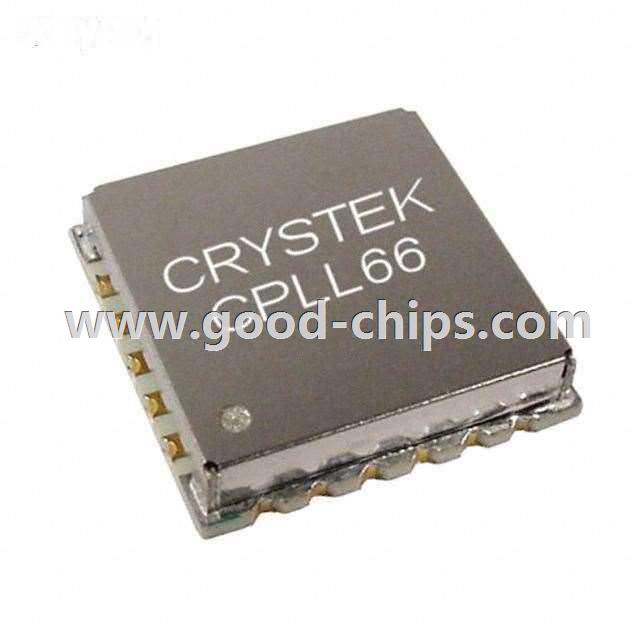

Manufacturer Part Number: | CPLL66-2400-2500 |
---|---|
Manufacturer: | Crystek Corporation |
Product Category: | Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers |
Available Quantity: | 9030 Pieces |
Unit Price: | Quote by Email |
Description: | IC VCO PLL/SYNTH 2500MHZ SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CPLL66-2400-2500 Datasheet |
Internal Part Number | 898-CPLL66-2400-2500 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Voltage Controlled Oscillators (VCO) Selection Techniques Overview | |
Online Catalog | Clock Generators | |
Category | Integrated Circuits (ICs) | |
Family | Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers | |
Manufacturer | Crystek Corporation | |
Series | - | |
Packaging | Cut Strip | |
Part Status | Active | |
Type | Clock/Frequency Synthesizer (RF) | |
PLL | Yes | |
Input | Clock | |
Output | Clock | |
Number of Circuits | 1 | |
Ratio - Input:Output | - | |
Differential - Input:Output | - | |
Frequency - Max | 2.5GHz | |
Divider/Multiplier | - | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |
Package / Case | 15.24mm x 15.24mm x 3.81mm | |
Supplier Device Package | 0606 | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CPLL66-2400-2500 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CPLL66-2400-2500 is in stock for immediate shipping now. We are the distributor of Crystek Corporation all series components. The condition of CPLL66-2400-2500 is new and unused, you can buy CPLL66-2400-2500 Crystek Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPLL66-2400-2500.
