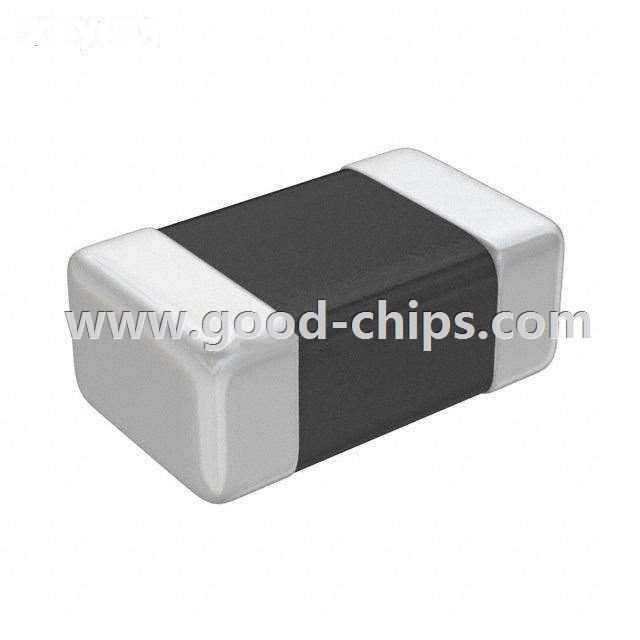

| Manufacturer Part Number: | CPL2512TR68M |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680nH Shielded Wirewound Inductor 1.4A 77 mOhm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPL2512TR68M Datasheet |
| Internal Part Number | 898-CPL2512TR68M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | TDK Corporation | |
| Series | CPL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 680nH | |
| Tolerance | ±20% | |
| Current Rating | 1.4A | |
| Current - Saturation | 1.6A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 77 mOhm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | - | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.098" L x 0.059" W (2.50mm x 1.50mm) | |
| Height - Seated (Max) | 0.047" (1.20mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPL2512TR68M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPL2512TR68M is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of CPL2512TR68M is new and unused, you can buy CPL2512TR68M TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPL2512TR68M.
