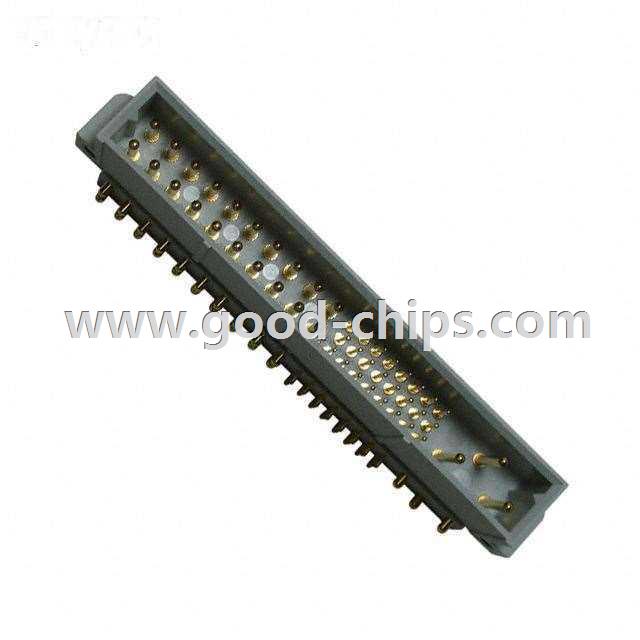

| Manufacturer Part Number: | CPH47W23MARCSK9X |
|---|---|
| Manufacturer: | Conec |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN CPCO 47POS PLUG R/A SOLDER |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPH47W23MARCSK9X Datasheet |
| Internal Part Number | 898-CPH47W23MARCSK9X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Reach Cert of Compliance | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Conec | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Plug, Male Pins | |
| Connector Style | CompactPCI® | |
| Number of Positions | 47 | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | - | |
| Number of Columns | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Contact Layout, Typical | 24 Signal, 23 Power | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 31.5µin (0.80µm) | |
| Color | Gray | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPH47W23MARCSK9X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPH47W23MARCSK9X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of CPH47W23MARCSK9X is new and unused, you can buy CPH47W23MARCSK9X Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPH47W23MARCSK9X.
