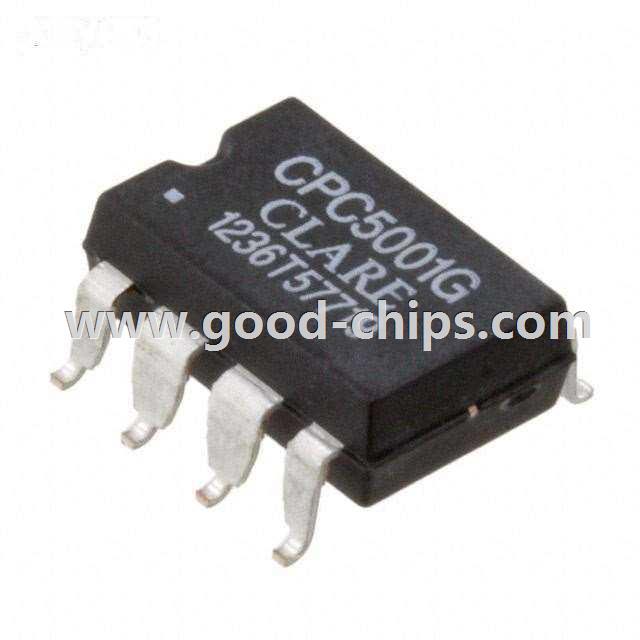

| Manufacturer Part Number: | CPC5001GSTR |
|---|---|
| Manufacturer: | IXYS Integrated Circuits Division |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 5MBd Open Drain 3750Vrms 2 Channel 5kV/µs, 7kV/µs CMTI |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPC5001GSTR Datasheet |
| Internal Part Number | 898-CPC5001GSTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | CPC5001 Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | IXYS Integrated Circuits Division | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 2 | |
| Inputs - Side 1/Side 2 | 1/1 | |
| Voltage - Isolation | 3750Vrms | |
| Common Mode Transient Immunity (Min) | 5kV/µs, 7kV/µs | |
| Input Type | Logic | |
| Output Type | Open Drain | |
| Current - Output / Channel | - | |
| Data Rate | 5MBd | |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 100ns | |
| Rise / Fall Time (Typ) | - | |
| Voltage - Forward (Vf) (Typ) | - | |
| Current - DC Forward (If) (Max) | - | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD, Gull Wing | |
| Supplier Device Package | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPC5001GSTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPC5001GSTR is in stock for immediate shipping now. We are the distributor of IXYS Integrated Circuits Division all series components. The condition of CPC5001GSTR is new and unused, you can buy CPC5001GSTR IXYS Integrated Circuits Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPC5001GSTR.
