| Manufacturer Part Number: | CPC1301GRTR |
|---|---|
| Manufacturer: | IXYS Integrated Circuits Division |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 23010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CPC1301GRTR Datasheet |
| Internal Part Number | 898-CPC1301GRTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Data Sheet Chg 12/Jan/2016 | |
| Online Catalog | CPC1301 Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | IXYS Integrated Circuits Division | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 1000% @ 1mA | |
| Current Transfer Ratio (Max) | 8000% @ 1mA | |
| Turn On / Turn Off Time (Typ) | 1µs, 80µs | |
| Rise / Fall Time (Typ) | 40µs, 2.6µs | |
| Input Type | DC | |
| Output Type | Darlington | |
| Voltage - Output (Max) | 350V | |
| Current - Output / Channel | - | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 1mA | |
| Vce Saturation (Max) | 1.2V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

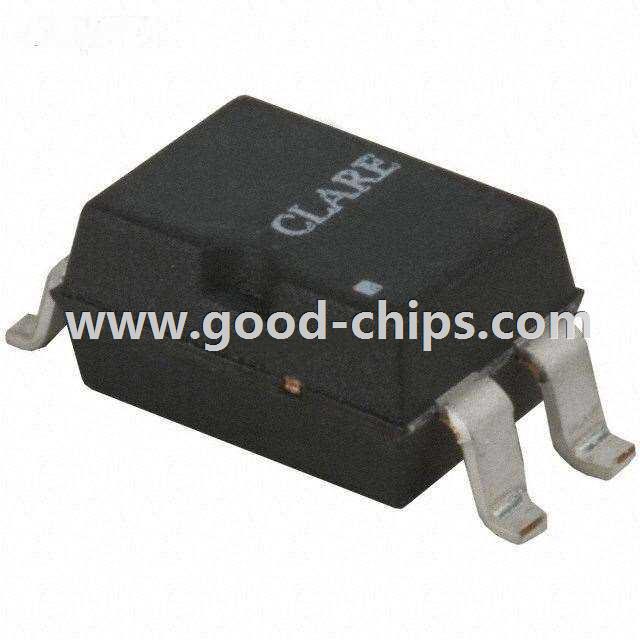

| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-SMD | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CPC1301GRTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CPC1301GRTR is in stock for immediate shipping now. We are the distributor of IXYS Integrated Circuits Division all series components. The condition of CPC1301GRTR is new and unused, you can buy CPC1301GRTR IXYS Integrated Circuits Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CPC1301GRTR.
