CPAD556M

CPAD556M
Manufacturer Part Number:CPAD556M
Manufacturer:
Product Category:Coaxial Connectors (RF) - Adapters
Available Quantity:9285 Pieces
Unit Price:Quote by Email

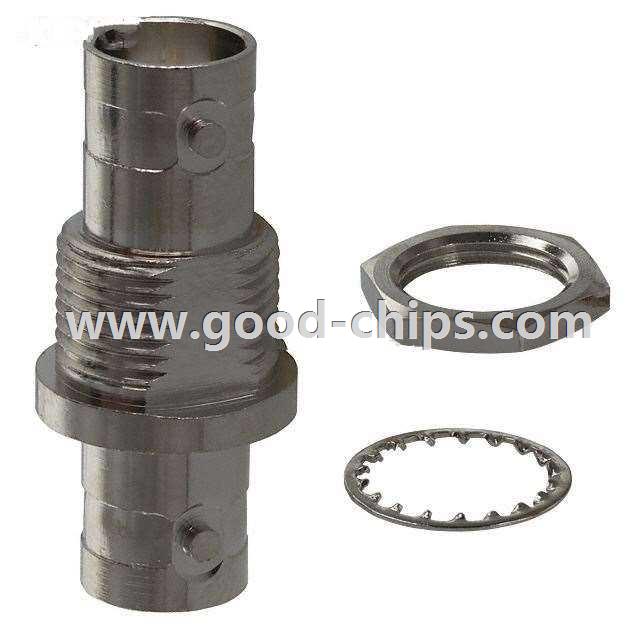

Description:Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohm
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CPAD556M Datasheet
CPAD556M´s Parameters
Internal Part Number898-CPAD556M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductConnectivity Solutions
Online Catalog Coaxial, RF Adapters
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF) - Adapters
ManufacturerCinch Connectivity Solutions AIM-Cambridge
Series-
PackagingBulk
Part StatusActive
Adapter TypeJack to Jack
Adapter SeriesBNC to BNC
Center GenderFemale to Female
Convert From (Adapter End)BNC Jack, Female Socket
Convert To (Adapter End)BNC Jack, Female Socket
Conversion TypeSame Series
Impedance50 Ohm
StyleStraight
Mounting TypePanel Mount, Bulkhead
Frequency - Max4GHz
Ingress Protection-
Features-
Body MaterialBrass
Body FinishNickel
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Mating Cycles-
Standard Package 10
Weight0.001 KG
ApplicationEmail for details
Replacement PartCPAD556M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CPAD556M is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of CPAD556M is new and unused, you can buy CPAD556M Bel Power Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CPAD556M.
