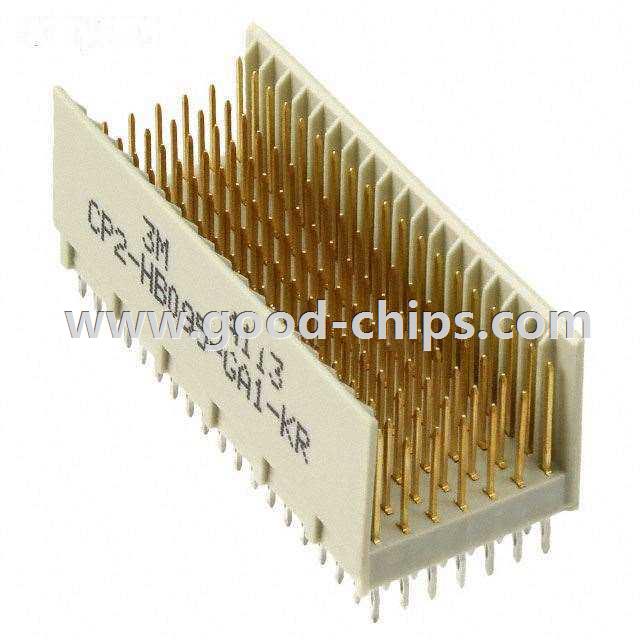

| Manufacturer Part Number: | CP2-HB095-GA1-KR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Backplane Connectors - Hard Metric, Standard |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 133 (95 + 38 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CP2-HB095-GA1-KR Datasheet |
| Internal Part Number | 898-CP2-HB095-GA1-KR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MetPak™ CP2 | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Hard Metric, Standard | |
| Manufacturer | 3M | |
| Series | MetPak™ CP2 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Header, Male Pins | |
| Connector Style | B 19 | |
| Number of Positions | 133 (95 + 38 Ground) | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 5 + 2 | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Connector Usage | CompactPCI Hot Swap | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Current Rating | - | |
| Voltage Rating | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Features | - | |
| Standard Package | 540 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CP2-HB095-GA1-KR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CP2-HB095-GA1-KR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of CP2-HB095-GA1-KR is new and unused, you can buy CP2-HB095-GA1-KR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CP2-HB095-GA1-KR.
