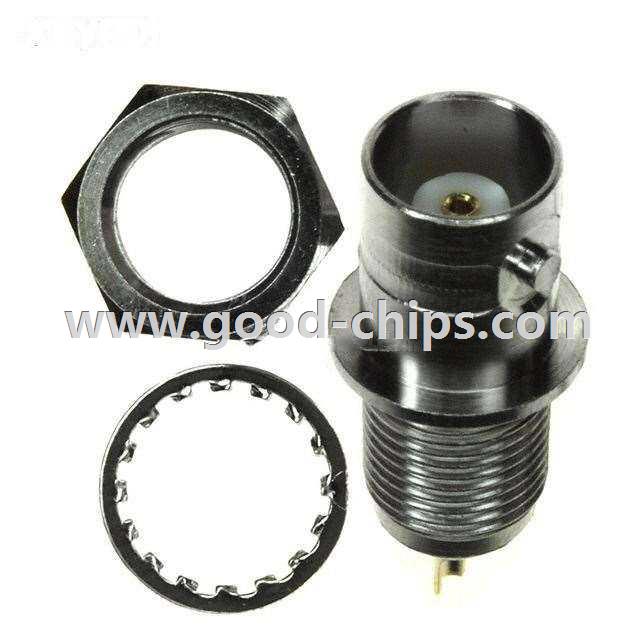

Manufacturer Part Number: | CP1094AST |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9600 Pieces |
Unit Price: | Quote by Email |
Description: | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Rear Side Nut Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CP1094AST Datasheet |
Internal Part Number | 898-CP1094AST | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Connectivity Solutions | |
Online Catalog | BNC | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Cinch Connectivity Solutions AIM-Cambridge | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | BNC | |
Connector Type | Jack, Female Socket | |
Contact Termination | Solder Cup | |
Shield Termination | Solder | |
Impedance | 50 Ohm | |
Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | |
Cable Group | - | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 4GHz | |
Features | Extended Insulation | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | 500V | |
Operating Temperature | -55°C ~ 85°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CP1094AST | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CP1094AST is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of CP1094AST is new and unused, you can buy CP1094AST Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CP1094AST.
