| Manufacturer Part Number: | CONN005 |
|---|---|
| Manufacturer: | Linx Technologies Inc. |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

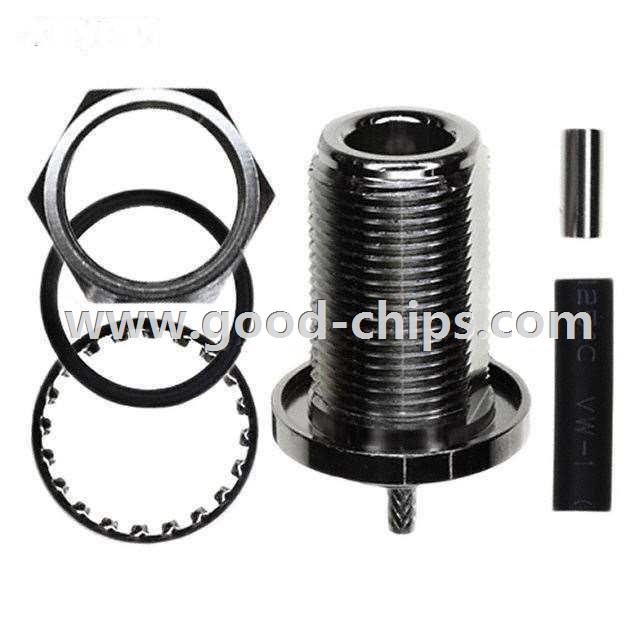

| Description: | N Type Connector Receptacle, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CONN005 Datasheet |
| Internal Part Number | 898-CONN005 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| PCN Obsolescence/ EOL | CONN05,07,11,12 Series 06/Dec/2012 | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Linx Technologies Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Connector Style | N Type | |
| Connector Type | Receptacle, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Crimp | |
| Impedance | 50 Ohm | |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | |
| Cable Group | RG-174 | |
| Fastening Type | Threaded | |
| Frequency - Max | 11GHz | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Center Contact Material | Brass | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | 500V | |
| Operating Temperature | -65°C ~ 165°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CONN005 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CONN005 is in stock for immediate shipping now. We are the distributor of Linx Technologies Inc. all series components. The condition of CONN005 is new and unused, you can buy CONN005 Linx Technologies Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CONN005.
