Manufacturer Part Number: | CMX309FLC3.6864M-UT |
---|---|
Manufacturer: | Citizen Finedevice Co Ltd |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 3.6864MHz CMOS, TTL XO (Standard) Oscillator Surface Mount 5V 23mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMX309FLC3.6864M-UT Datasheet |
Internal Part Number | 898-CMX309FLC3.6864M-UT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | Citizen Finedevice Co Ltd | |

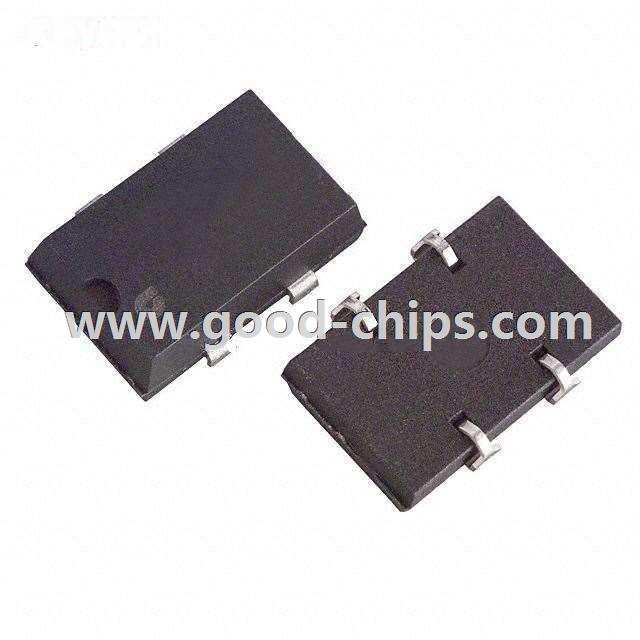

Series | CMX-309 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | XO (Standard) | |
Frequency | 3.6864MHz | |
Function | Enable/Disable | |
Output | CMOS, TTL | |
Voltage - Supply | 5V | |
Frequency Stability | ±100ppm | |
Operating Temperature | -10°C ~ 70°C | |
Current - Supply (Max) | 23mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.547" L x 0.341" W (13.90mm x 8.65mm) | |
Height | 0.185" (4.70mm) | |
Package / Case | 4-SOJ, 5.08mm pitch | |
Current - Supply (Disable) (Max) | 12mA | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMX309FLC3.6864M-UT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMX309FLC3.6864M-UT is in stock for immediate shipping now. We are the distributor of Citizen Finedevice Co Ltd all series components. The condition of CMX309FLC3.6864M-UT is new and unused, you can buy CMX309FLC3.6864M-UT Citizen Finedevice Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMX309FLC3.6864M-UT.
