Manufacturer Part Number: | CMUD2838 TR |
---|---|
Manufacturer: | Central Semiconductor Corp |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 15010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 1 Pair Common Cathode Standard 75V 200mA Surface Mount SOT-523 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMUD2838 TR Datasheet |
Internal Part Number | 898-CMUD2838 TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Standard Switching Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Central Semiconductor Corp | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Diode Configuration | 1 Pair Common Cathode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 75V | |
Current - Average Rectified (Io) (per Diode) | 200mA | |
Voltage - Forward (Vf) (Max) @ If | 1.2V @ 100mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | 4ns | |
Current - Reverse Leakage @ Vr | 100nA @ 50V | |
Mounting Type | Surface Mount | |

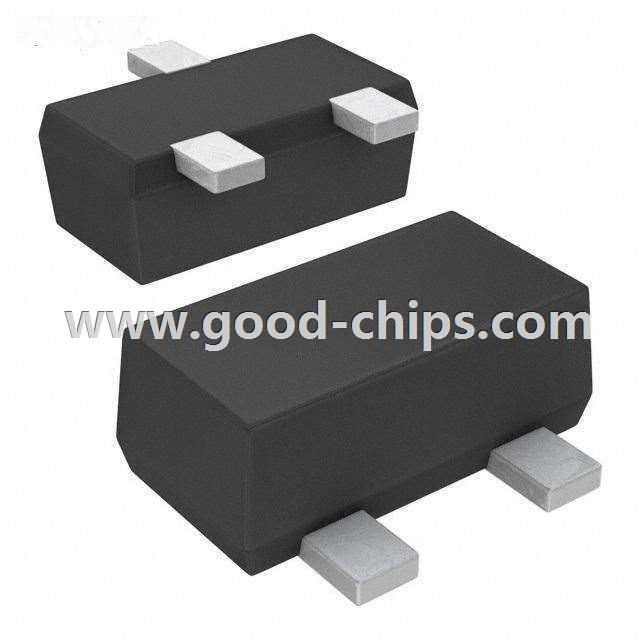

Package / Case | SOT-523 | |
Supplier Device Package | SOT-523 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMUD2838 TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMUD2838 TR is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CMUD2838 TR is new and unused, you can buy CMUD2838 TR Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMUD2838 TR.
