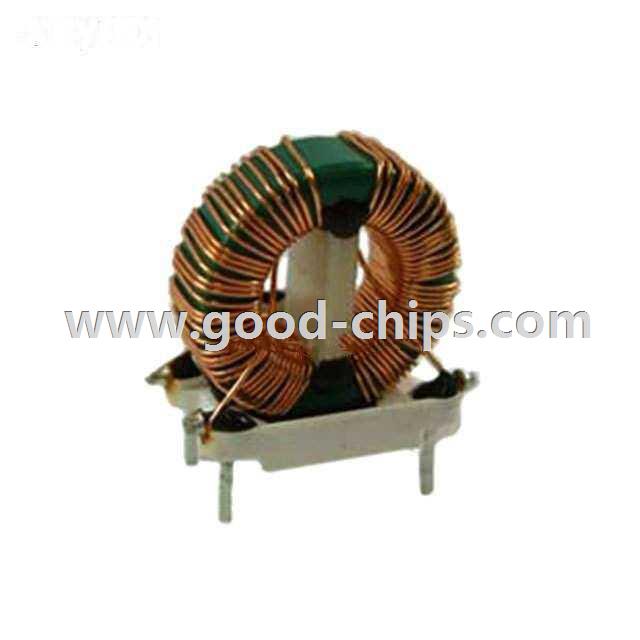

Manufacturer Part Number: | CMT-8104-B |
---|---|
Manufacturer: | Triad Magnetics |
Product Category: | Common Mode Chokes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2 Line Common Mode Choke Through Hole 2.4A DCR 170 mOhm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMT-8104-B Datasheet |
Internal Part Number | 898-CMT-8104-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CMT-8104 | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | Triad Magnetics | |
Series | CMT | |
Packaging | Bulk | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 2 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | - | |
Current Rating (Max) | 2.4A | |
DC Resistance (DCR) (Max) | 170 mOhm | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | - | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Through Hole | |
Size / Dimension | 1.200" L x 0.600" W (30.48mm x 15.24mm) | |
Height (Max) | 1.200" (30.48mm) | |
Package / Case | Vertical, 4 PC Pin | |
Standard Package | 180 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMT-8104-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMT-8104-B is in stock for immediate shipping now. We are the distributor of Triad Magnetics all series components. The condition of CMT-8104-B is new and unused, you can buy CMT-8104-B Triad Magnetics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMT-8104-B.
