Manufacturer Part Number: | CMS2-4-R |
---|---|
Manufacturer: | Eaton |
Product Category: | Common Mode Chokes |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |

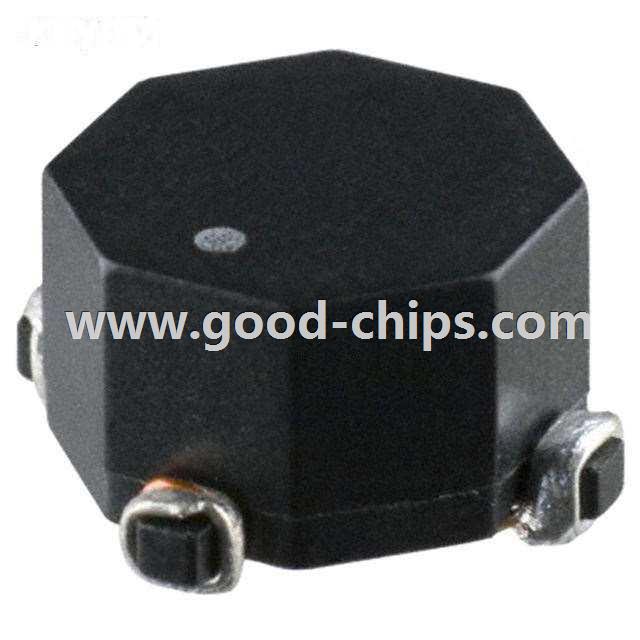

Description: | 102µH @ 100kHz 2 Line Common Mode Choke Surface Mount 2.8A DCR 19 mOhm (Typ) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMS2-4-R Datasheet |
Internal Part Number | 898-CMS2-4-R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Multiple Devices 31/Aug/2013 Coiltronics Magnetics Facility 31/Aug/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | CMS Series | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | Eaton | |
Series | CMS | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 2 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | 102µH @ 100kHz | |
Current Rating (Max) | 2.8A | |
DC Resistance (DCR) (Max) | 19 mOhm (Typ) | |
Voltage Rating - DC | - | |
Voltage Rating - AC | - | |
Operating Temperature | -40°C ~ 160°C | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | |
Height (Max) | 0.236" (6.00mm) | |
Package / Case | Horizontal, 4 PC Pad | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMS2-4-R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMS2-4-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of CMS2-4-R is new and unused, you can buy CMS2-4-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMS2-4-R.
