Manufacturer Part Number: | CMPS5062 TR |
---|---|
Manufacturer: | Central Semiconductor Corp |
Product Category: | Thyristors - SCRs |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | SCR 200V 250mA Sensitive Gate Surface Mount SOT-23 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMPS5062 TR Datasheet |
Internal Part Number | 898-CMPS5062 TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Declaration of Compliance | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs | |
Manufacturer | Central Semiconductor Corp | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Not Available | |
Voltage - Off State | 200V | |
Voltage - Gate Trigger (Vgt) (Max) | 800mV | |
Current - Gate Trigger (Igt) (Max) | 200µA | |
Voltage - On State (Vtm) (Max) | 1.7V | |
Current - On State (It (AV)) (Max) | 160mA | |
Current - On State (It (RMS)) (Max) | 250mA | |
Current - Hold (Ih) (Max) | 5mA | |
Current - Off State (Max) | 1µA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | - | |
SCR Type | Sensitive Gate | |
Operating Temperature | -65°C ~ 125°C | |
Mounting Type | Surface Mount | |

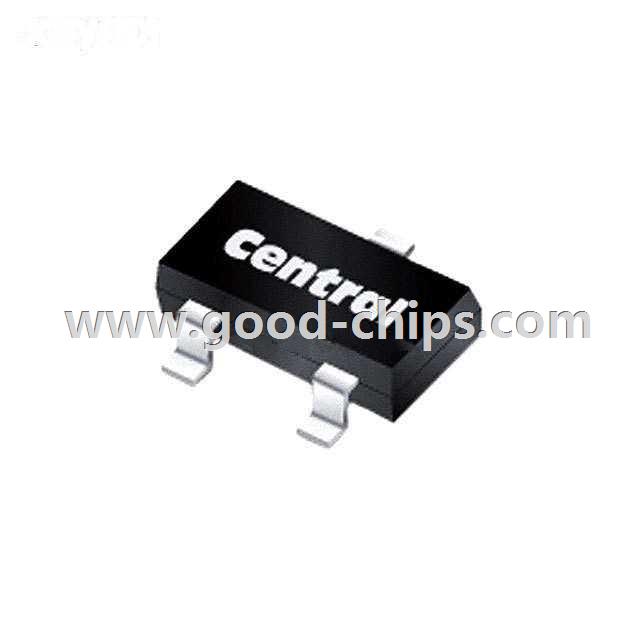

Package / Case | TO-236-3, SC-59, SOT-23-3 | |
Supplier Device Package | SOT-23 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMPS5062 TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMPS5062 TR is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CMPS5062 TR is new and unused, you can buy CMPS5062 TR Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMPS5062 TR.
