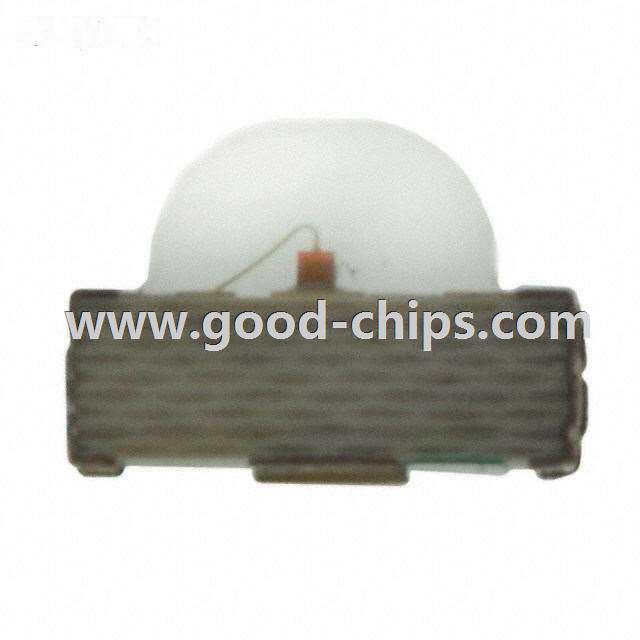

| Manufacturer Part Number: | CMDA7CY7A1Z |
|---|---|
| Manufacturer: | Visual Communications Company - VCC |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Yellow 590nm LED Indication - Discrete 2.1V 2-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CMDA7CY7A1Z Datasheet |
| Internal Part Number | 898-CMDA7CY7A1Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 28/Feb/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Visual Communications Company - VCC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Color | Yellow | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 3mcd | |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 20mA | |
| Viewing Angle | 90° | |
| Mounting Type | Surface Mount, Right Angle | |
| Wavelength - Dominant | 590nm | |
| Wavelength - Peak | 580nm | |
| Features | - | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | SMD | |
| Size / Dimension | 3.00mm L x 2.00mm W | |
| Height (Max) | 1.00mm | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CMDA7CY7A1Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CMDA7CY7A1Z is in stock for immediate shipping now. We are the distributor of Visual Communications Company - VCC all series components. The condition of CMDA7CY7A1Z is new and unused, you can buy CMDA7CY7A1Z Visual Communications Company - VCC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMDA7CY7A1Z.
