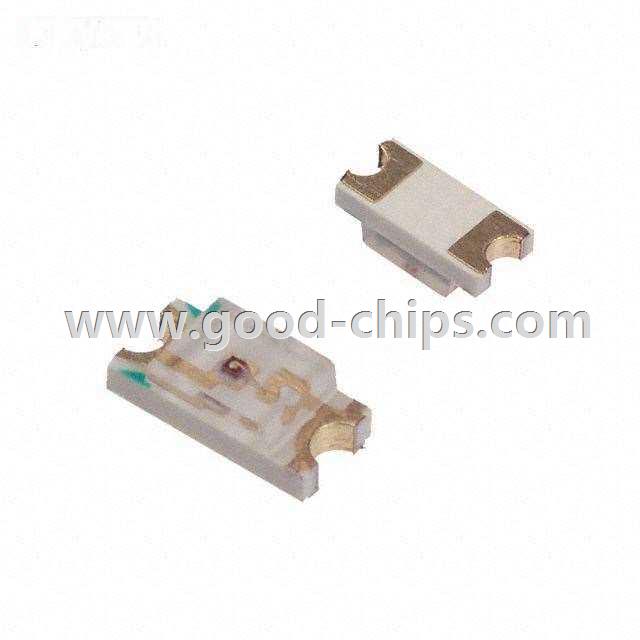

| Manufacturer Part Number: | CMD15-21VGD/TR8 |
|---|---|
| Manufacturer: | Visual Communications Company - VCC |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 77010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green LED Indication - Discrete 2.1V 1206 (3216 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CMD15-21VGD/TR8 Datasheet |
| Internal Part Number | 898-CMD15-21VGD/TR8 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | CMD15-21 and CMD15-22 Series Rectangle with Flat Top 1206 Package LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Visual Communications Company - VCC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Green | |
| Lens Color | Green | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 6.5mcd | |
| Lens Style/Size | Rectangle with Flat Top, 2.00mm x 1.50mm | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 20mA | |
| Viewing Angle | - | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | - | |
| Wavelength - Peak | 570nm | |
| Features | - | |
| Package / Case | 1206 (3216 Metric) | |
| Supplier Device Package | 1206 | |
| Size / Dimension | 3.20mm L x 1.50mm W | |
| Height (Max) | 1.30mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CMD15-21VGD/TR8 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CMD15-21VGD/TR8 is in stock for immediate shipping now. We are the distributor of Visual Communications Company - VCC all series components. The condition of CMD15-21VGD/TR8 is new and unused, you can buy CMD15-21VGD/TR8 Visual Communications Company - VCC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMD15-21VGD/TR8.
