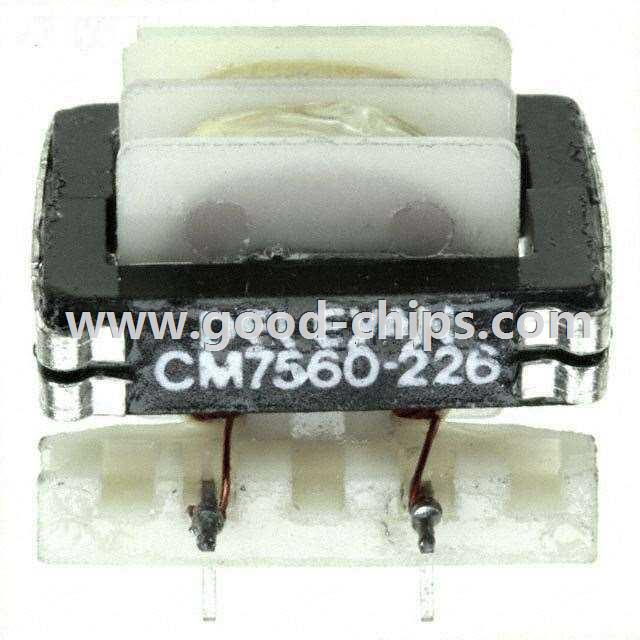

CM7560-226

CM7560-226
Manufacturer Part Number:CM7560-226
Manufacturer:
Product Category:Common Mode Chokes
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:22mH @ 1kHz 2 Line Common Mode Choke Through Hole 550mA DCR 1.5 Ohm
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CM7560-226 Datasheet
CM7560-226´s Parameters
Internal Part Number898-CM7560-226
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryFilters
FamilyCommon Mode Chokes
ManufacturerAPI Delevan Inc.
SeriesCM7560
PackagingBulk
Part StatusActive
Filter Type-
Number of Lines2
Impedance @ Frequency-
Inductance @ Frequency22mH @ 1kHz
Current Rating (Max)550mA
DC Resistance (DCR) (Max)1.5 Ohm
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-55°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max)0.861" (21.86mm)
Package / CaseVertical, 4 PC Pin
Standard Package 25
Weight0.001 KG
ApplicationEmail for details
Replacement PartCM7560-226
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CM7560-226 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of CM7560-226 is new and unused, you can buy CM7560-226 API Delevan Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CM7560-226.
