| Manufacturer Part Number: | CM6320 |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 70 Ohms, C = 30pF 24-UFBGA, WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM6320 Datasheet |
| Internal Part Number | 898-CM6320 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 18/Apr/2013 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 10 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 70 | |
| Current | - | |
| Values | R = 70 Ohms, C = 30pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

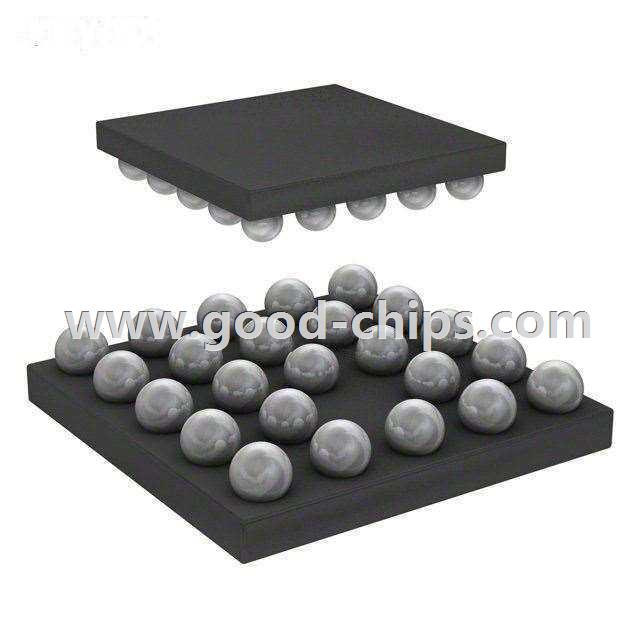

| Package / Case | 24-UFBGA, WLCSP | |
| Size / Dimension | 0.077" L x 0.077" W (1.96mm x 1.96mm) | |
| Height | 0.025" (0.63mm) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM6320 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM6320 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CM6320 is new and unused, you can buy CM6320 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM6320.
