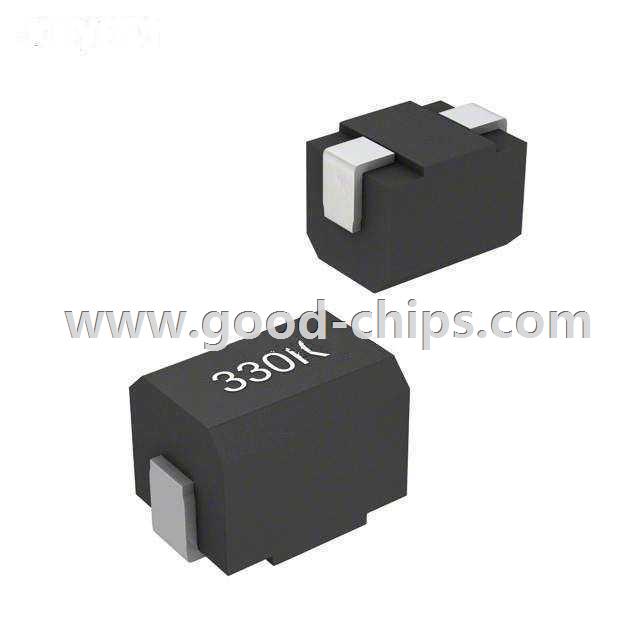

| Manufacturer Part Number: | CM453232-1R2KL |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1.2µH Unshielded Wirewound Inductor 430mA 550 mOhm Max 1812 (4532 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM453232-1R2KL Datasheet |
| Internal Part Number | 898-CM453232-1R2KL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | CM453232 Series Material Declaration | |
| 3D Model | CM453232.stp | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| PCN Packaging | CM453232,PM1812 Nov/2015 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | CM453232 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 1.2µH | |
| Tolerance | ±10% | |
| Current Rating | 430mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 550 mOhm Max | |
| Q @ Freq | 50 @ 7.96MHz | |
| Frequency - Self Resonant | 80MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 7.96MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1812 (4532 Metric) | |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | |
| Height - Seated (Max) | 0.134" (3.40mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM453232-1R2KL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM453232-1R2KL is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CM453232-1R2KL is new and unused, you can buy CM453232-1R2KL Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM453232-1R2KL.
