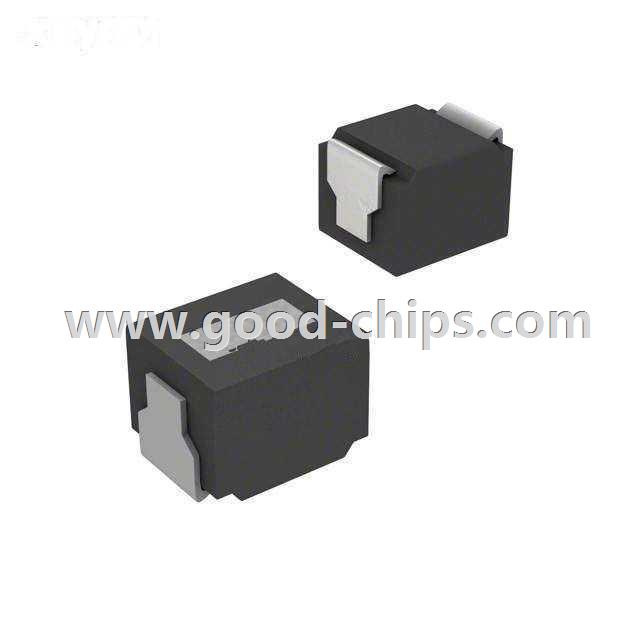

| Manufacturer Part Number: | CM322522-R68KL |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 680nH Unshielded Wirewound Inductor 260mA 550 mOhm Max 1210 (3225 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM322522-R68KL Datasheet |
| Internal Part Number | 898-CM322522-R68KL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | CM322522 Series Material Declaration | |
| 3D Model | CM322522.stp | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | CM322522 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 680nH | |
| Tolerance | ±10% | |
| Current Rating | 260mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 550 mOhm Max | |
| Q @ Freq | 25 @ 25.2MHz | |
| Frequency - Self Resonant | 135MHz | |
| Ratings | - | |
| Operating Temperature | -20°C ~ 100°C | |
| Frequency - Test | 25.2MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | 0.086" (2.20mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM322522-R68KL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM322522-R68KL is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CM322522-R68KL is new and unused, you can buy CM322522-R68KL Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM322522-R68KL.
