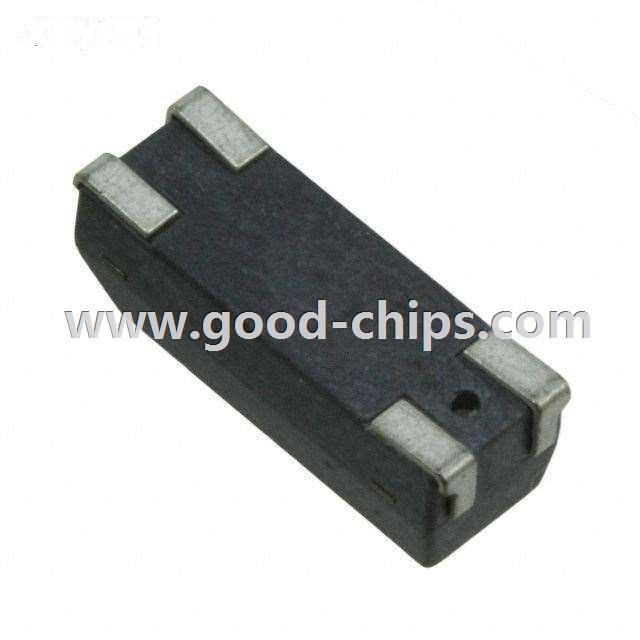

| Manufacturer Part Number: | CM309A15.360MABJT |
|---|---|
| Manufacturer: | Citizen Finedevice Co Ltd |
| Product Category: | Crystals |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 15.36MHz ±30ppm Crystal 18pF 50 Ohm -10°C ~ 60°C Surface Mount 2-SOJ, 2.85mm pitch |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM309A15.360MABJT Datasheet |
| Internal Part Number | 898-CM309A15.360MABJT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Crystals | |
| Manufacturer | Citizen Finedevice Co Ltd | |
| Series | CM309A | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Type | MHz Crystal | |
| Frequency | 15.36MHz | |
| Frequency Stability | ±50ppm | |
| Frequency Tolerance | ±30ppm | |
| Load Capacitance | 18pF | |
| ESR (Equivalent Series Resistance) | 50 Ohm | |
| Operating Mode | Fundamental | |
| Operating Temperature | -10°C ~ 60°C | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SOJ, 2.85mm pitch | |
| Size / Dimension | 0.528" L x 0.200" W (13.40mm x 5.08mm) | |
| Height | 0.181" (4.60mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM309A15.360MABJT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM309A15.360MABJT is in stock for immediate shipping now. We are the distributor of Citizen Finedevice Co Ltd all series components. The condition of CM309A15.360MABJT is new and unused, you can buy CM309A15.360MABJT Citizen Finedevice Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM309A15.360MABJT.
