| Manufacturer Part Number: | CM1499-E6DE |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 15pF 12-VFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM1499-E6DE Datasheet |
| Internal Part Number | 898-CM1499-E6DE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | CMD Devices 16/Mar/2011 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 2nd | |
| Technology | RC (Pi) | |
| Number of Channels | 6 | |
| Center / Cutoff Frequency | 110MHz (Cutoff) | |
| Attenuation Value | 30dB @ 800MHz ~ 6GHz | |
| Resistance - Channel (Ohms) | 100 | |
| Current | - | |
| Values | R = 100 Ohms, C = 15pF | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

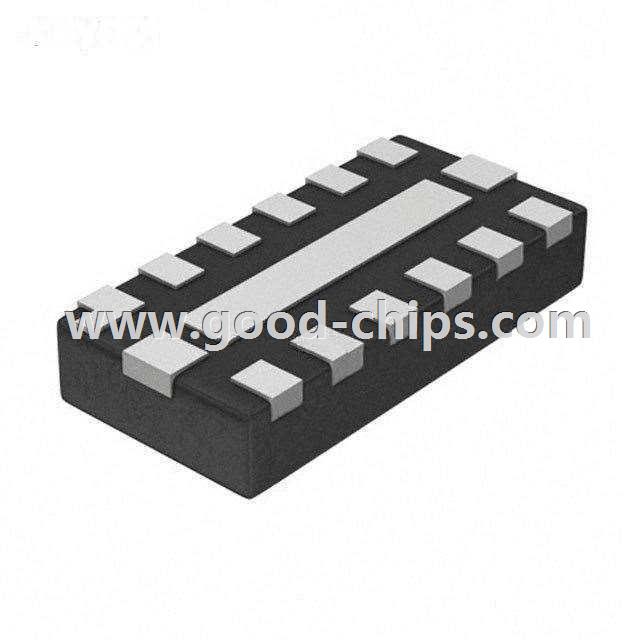

| Package / Case | 12-VFDFN Exposed Pad | |
| Size / Dimension | 0.118" L x 0.053" W (3.00mm x 1.35mm) | |
| Height | 0.039" (1.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM1499-E6DE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM1499-E6DE is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CM1499-E6DE is new and unused, you can buy CM1499-E6DE ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM1499-E6DE.
