| Manufacturer Part Number: | CM1451-08CP |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LC (Pi) EMI Filter 5th Order Low Pass 8 Channel L = 34nH (Total), C = 28.5pF (Total) 30mA 20-WFBGA, WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM1451-08CP Datasheet |
| Internal Part Number | 898-CM1451-08CP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 30/Sept/2011 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 5th | |
| Technology | LC (Pi) | |
| Number of Channels | 8 | |
| Center / Cutoff Frequency | 260MHz (Cutoff) | |
| Attenuation Value | 35dB @ 800MHz ~ 2.7GHz | |
| Resistance - Channel (Ohms) | 18 | |
| Current | 30mA | |
| Values | L = 34nH (Total), C = 28.5pF (Total) | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

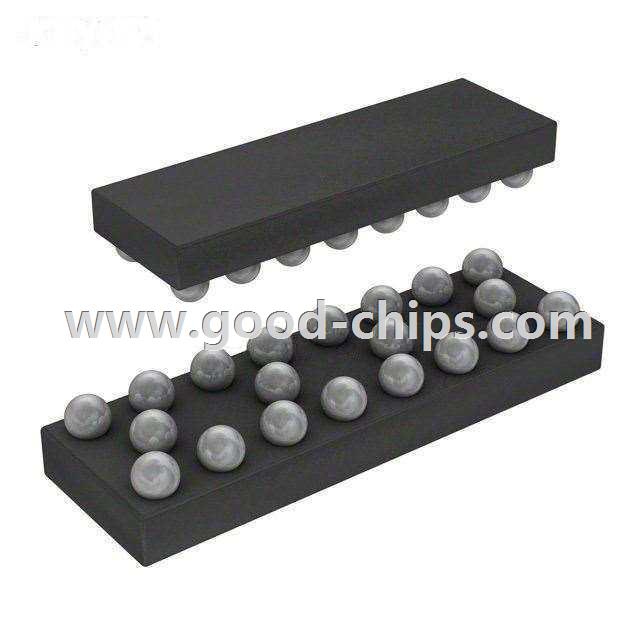

| Package / Case | 20-WFBGA, WLCSP | |
| Size / Dimension | 0.158" L x 0.054" W (4.01mm x 1.38mm) | |
| Height | 0.028" (0.71mm) | |
| Standard Package | 3,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM1451-08CP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM1451-08CP is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CM1451-08CP is new and unused, you can buy CM1451-08CP ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM1451-08CP.
