Manufacturer Part Number: | CM1223-02SR |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 3.3VWM 8.8VC SOT143-4 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CM1223-02SR Datasheet |
Internal Part Number | 898-CM1223-02SR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Qualification Wafer Fab Site 17/Apr/2014 | |
Online Catalog | CM1223 Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Steering (Rail to Rail) | |
Unidirectional Channels | - | |
Bidirectional Channels | 2 | |
Voltage - Reverse Standoff (Typ) | 3.3V | |
Voltage - Breakdown (Min) | 6V | |
Voltage - Clamping (Max) @ Ipp | 8.8V (Typ) | |
Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
Power - Peak Pulse | - | |
Power Line Protection | Yes | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |
Package / Case | TO-253-4, TO-253AA | |

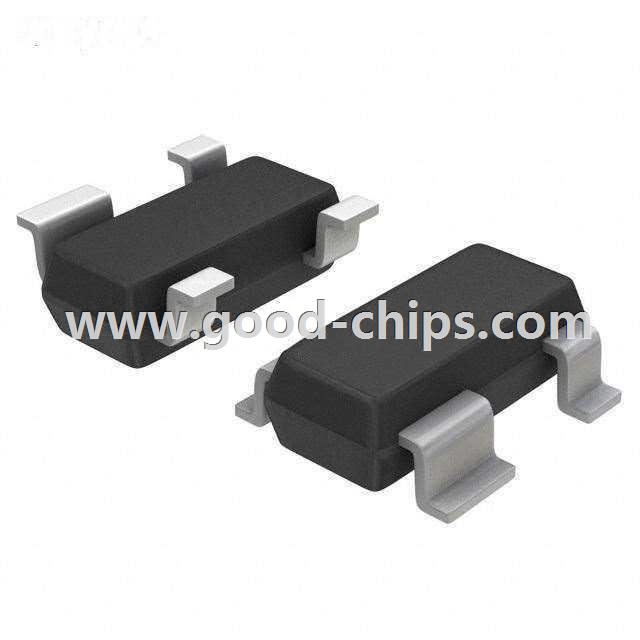

Supplier Device Package | SOT-143-4 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CM1223-02SR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CM1223-02SR is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of CM1223-02SR is new and unused, you can buy CM1223-02SR ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM1223-02SR.
