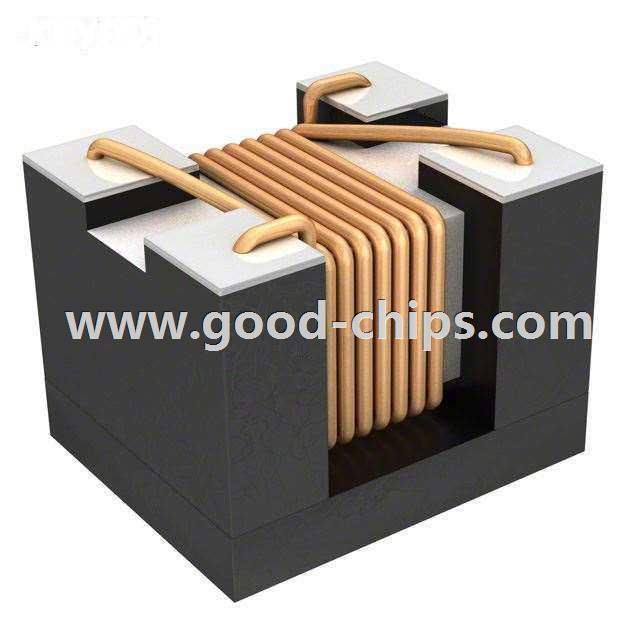

| Manufacturer Part Number: | CM01U900T |
|---|---|
| Manufacturer: | Taiyo Yuden |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 90 Ohm @ 100MHz 400mA DCR 300 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CM01U900T Datasheet |
| Internal Part Number | 898-CM01U900T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | CM01 Series 06/Mar/2012 | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Taiyo Yuden | |
| Series | CM01 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 90 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 400mA | |
| DC Resistance (DCR) (Max) | 300 mOhm | |
| Voltage Rating - DC | 20V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.047" L x 0.039" W (1.20mm x 1.00mm) | |
| Height (Max) | 0.035" (0.90mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CM01U900T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CM01U900T is in stock for immediate shipping now. We are the distributor of Taiyo Yuden all series components. The condition of CM01U900T is new and unused, you can buy CM01U900T Taiyo Yuden with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CM01U900T.
